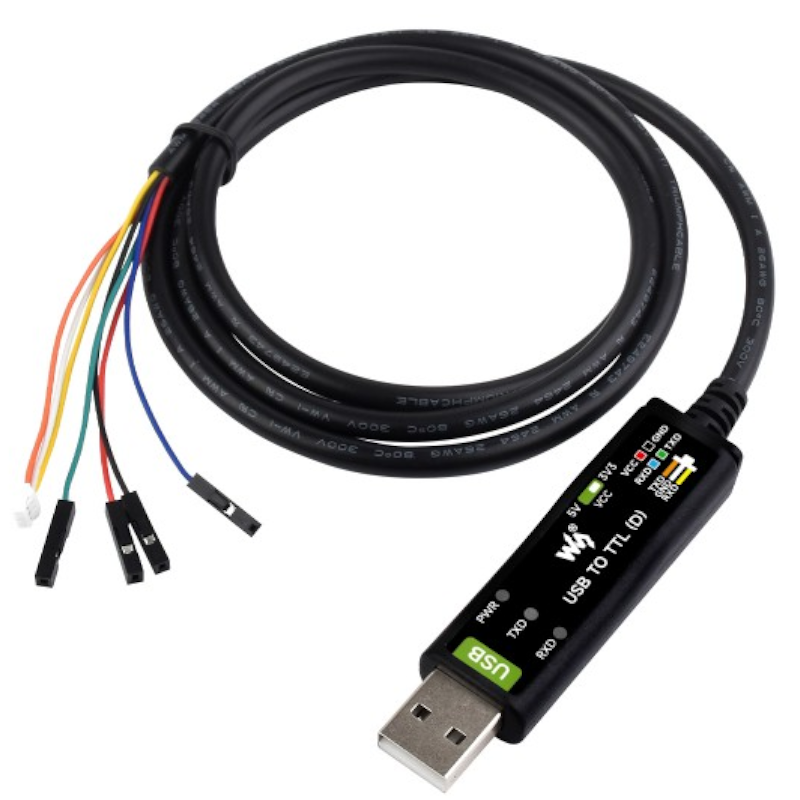

Industrial USB TO TTL Serial Cable, Original FT232RNL Chip w/ Protection Circuits - Waveshare 26738

: COM03041
€9.50
Tax included

Industrial USB TO TTL serial cable, adopts original FT232RNL chip, onboard power supply and signal indicators, supports 3.3V/5V voltage level switching, built in self-recovery fuse, ESD and IO protection diode circuits, etc. It is compact in size, suitable for serial port debugging of industrial equipments and can be directly connected to the Raspberry Pi 5.

If you want to know more about this product, please check its Wiki Page.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Specifications

Product category

Industrial USB TO TTL serial cable

Chip scheme

FTDI original FT232RNL

Host port

USB

Data rate

300bps ~ 3Mbps

Device Port

UART

USB port

Connector: USB-A

Protection: self-recovery fuse, ESD protection

UART port

Connector: separated 4pin female header + SH1.0 3PIN fool-proof connector

Protection: IO protection diode

Indicator

PWR: power indicator, turns on when there is USB connection and voltage is detected

TXD: TX indicator, turns on while the USB port is sending data

RXD: RX indicator, turns on while the device port is sending data back

Cable

Black, PVC sheath, total length 1m



Onboard Original Chips

Adopts Original FT232RNL Chips, Providing Better Stability And Compatibility






Raspberry Pi UART debugging

Suitable for Raspberry Pi, supports multiple Connection Methods - Connect to PI5 UART Debug Connector Via SH1.0 3PIN cable



Connect To Raspberry Pi 40PIN GPIO UART Interface Via Separated 4PIN Header


NOTE: for reference only, the Raspberry Pi 5 is not included.



Multiple systems support

Compatible with popular systems like Win7/8/8.1/10/11, Mac, Linux, Android...




Three LED Indicators

Easily checking the operating status, convenient for programming / debugging






Pinouts Definition


VCC

3.3V or 5V output, configured by switch

GND

Ground

TXD

Connecting to MCU.RXD (signal direction: MCU.RX < < FT232 < < PC.TX)

RXD

Connecting to MCU.TXD (signal direction: MCU.TX > > FT232 > > PC.RX)



Outline dimensions


* The above dimensions are measured manually and may have some errors



Resources & Services


Wiki: www.waveshare.com/wiki/USB_TO_TTL_(D)
