T-U2T USB to TTL UART converter, type-C Male to type-C Female, CH9102 - LILYGO® Q320

:COM09023
€9.50
Tax included

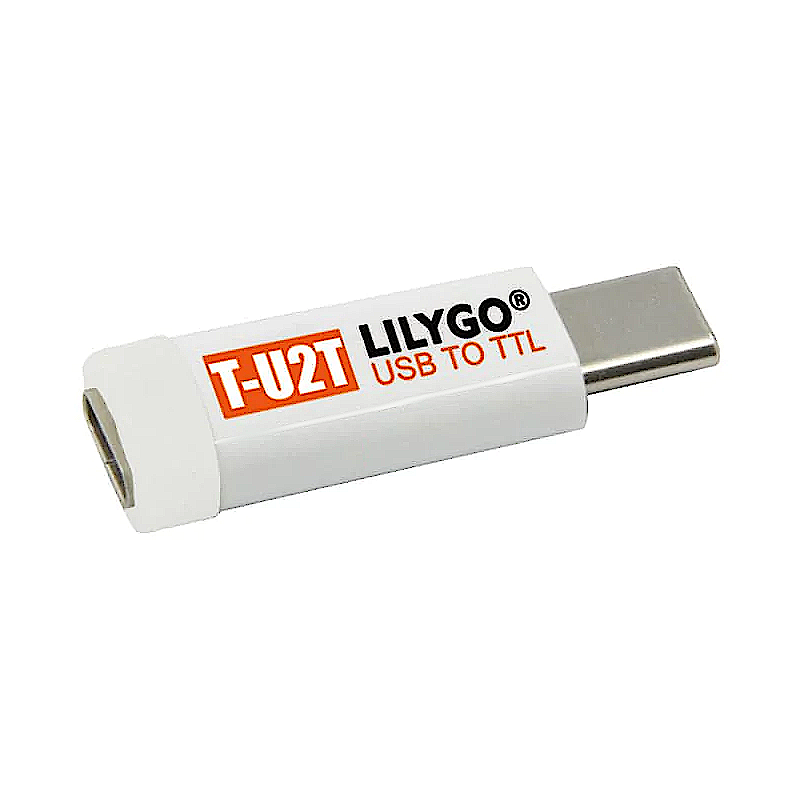

LILYGO T-U2T is the abbreviation of USB To TTL.
The original intention of this product design is that every time you design an ESP32 circuit board, you will find that the same circuit of USB To TTL appears on the schematic, especially when creating a small-sized circuit.


This circuit occupies a lot of space, and it also increases the cost, so we want to change it, Finally, we discovered that each product also has another feature that is the USB interface with TYPE-C.
So based on the characteristics of the male Type-c and female Type-C USB ports, we separately designed the CH9102 USB interface chip and automatic download circuit into the shape of a USB adapter.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



More info and updated documentation on LilyGo product page (T-U2T [Q320])



Specification

LILYGO T-U2T parameters

  1. USB chip CH9102 Max Read/Write Speed: 4Mbps
  2. Automatic download circuit
  3. boot button
  4. Power Indicator
  5. Type-C male
  6. Type-C female

Application scenarios

Requires USB To TTL motherboard
