Industrial USB TO 4CH TTL Converter, USB To UART, Multi Protection & Systems Support

:COM09021
€18.40
Tax included

Industrial USB TO 4CH TTL Converter, USB To UART, Multi Protection Circuits, Multi Systems Support

If you want to know more about this product, please check the Wiki Page.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

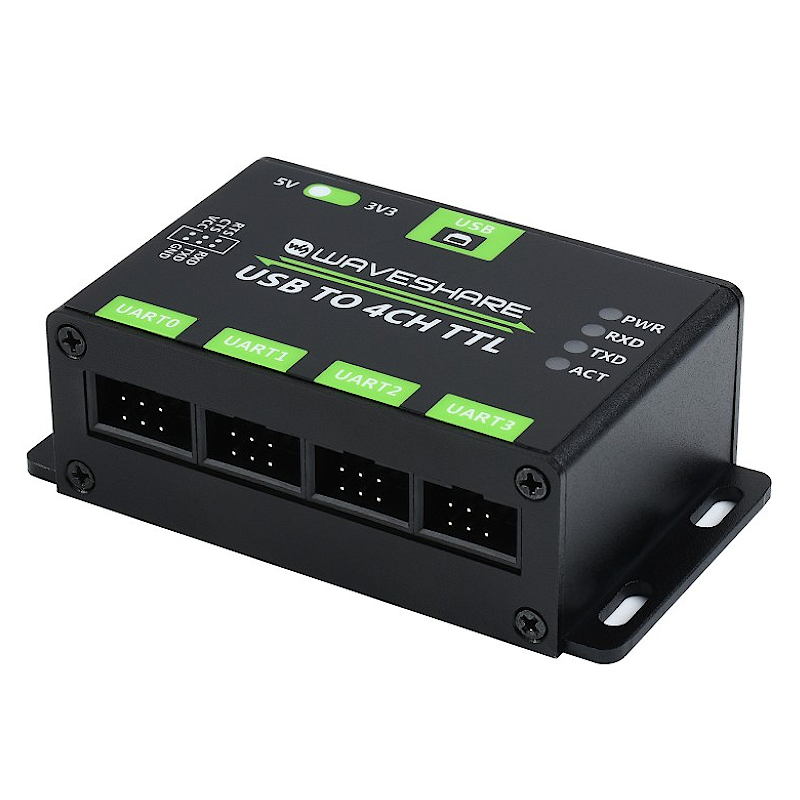

Industrial USB TO 4CH TTL UART CONVERTER

Stable Transmission | Multi Devices | Multi Systems




Features At A Glance

  1. Extending USB to 4CH TTL (UART) with hardware flow control, allows concurrent and independent communication for each channel

  2. Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance

  3. Onboard IO protection circuit for surge suppress and ESD protection, safe and stable communication

  4. Onboard TTL serial port 3.3V and 5V voltage level switch, allows selecting TTL level

  5. Aluminium alloy enclosure with oxidation dull-polish surface, CNC process opening, solid and durable, well-crafted

  6. Quality USB-B connector, and IDC connector with fool-proof design




Specifications

HOST PORT

USB

DEVICE PORT

UART

BAUDRATE

1200bps ~ 460800bps

USB PORT

Connector: USB-B
Protection: resettable fuse, ESD protection

UART PORT

Connector: 6PIN fool-proof header
Protection: IO protection diode



Multiple Protection, Safe And Stable

Onboard Resettable Fuse And Protection Diode, Provides Over-Current/Over-Voltage Proof, Improves Shock Resistance; Onboard IO Protection Circuit For Surge Suppress And ESD Protection, Safe And Stable Communication



Multiple Systems Support

Compatible With Popular Systems Like Win7/8/8.1/10/11, Mac, Linux, Android...




Application Examples

Suitable For Industrial/Office Conditions With Strict Requirements For Operating Environment And Devices


Extending USB to 4CH TTL UART
Industrial chip, 4CH TTL, allows concurrent and independent communication





Small size, easy installation
Flexible installation, suitable for sorts of devices to extend TTL interfaces





Reversed mounting holes
Easy wall mount, industrial alloy enclosure, solid and durable



Interface Introduction

USB-TO-4CH-TTL-details-11-1.jpg USB-TO-4CH-TTL-details-11.jpg



Indicators Description

PWR

power indicator, lights up while the USB is connected and voltage is detected

RXD

receiving indicator, lights up while the device port is receiving data

TXD

sending indicator, lights up while the USB port is sending data

ACT

status indicator, lights up while the converter is properly operating



Pinout Definition


VCC

5V or 3.3V output, configured by switch

GND

Ground

TXD

Connecting to MCU.RXD

RXD

Connecting to MCU.TXD

RTS

Connecting to MCU.CTS

CTS

Connecting to MCU.RTS





Outline Dimensions

Resources & Services




Package Content

Weight: 0.169 kg

  1. USB TO 4CH TTL x1
  2. USB cable (~1.2m) x1
  3. 6PIN squid wire (~20cm) x4
1USB-TO-4CH-TTL-4_220.jpg2USB-Type-B-Cable_93.jpg3jumper-wire-3x3pin-2.54-fool-proof-200mm_93.jpg
