32 Channel USB Relay Module

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Product Description

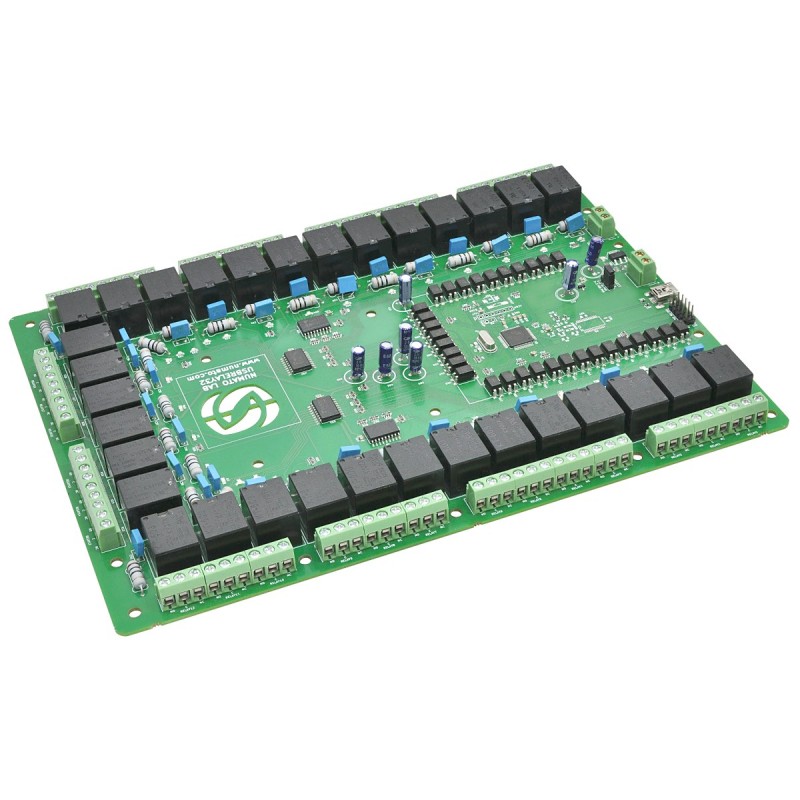

URMC32 32 Channel USB Relay Module is great for controlling your devices through USB without any USB protocol knowledge. This modules plugs in to your design seamless. Individual relay can be controlled by simple commands.Numato's URMC32 32 Channel USB Relay Module provides exceptional value for money.

It has thirty two on board 12v DC relays that can switch up to 10A load.The relays are controlled by USB capable Microchip PIC Microcontroller (PIC18F65J50) and comes with built in firmware that supports simple commands to control relays and read relay status. The board, when attached to a PC/Laptop shows up as a serial port and all you need to control the board is a serial terminal application like HyperTerminal or Putty. This board can easily be controlled by writing simple serial port application in VC++, VB, VBA (Word, Excell etc), Perl, Python etc.

Supported operating Systems

• Windows XP
• Windows 7
• Windows 8/8.1
• Windows 10
• Linux
• Mac OS X
• Android

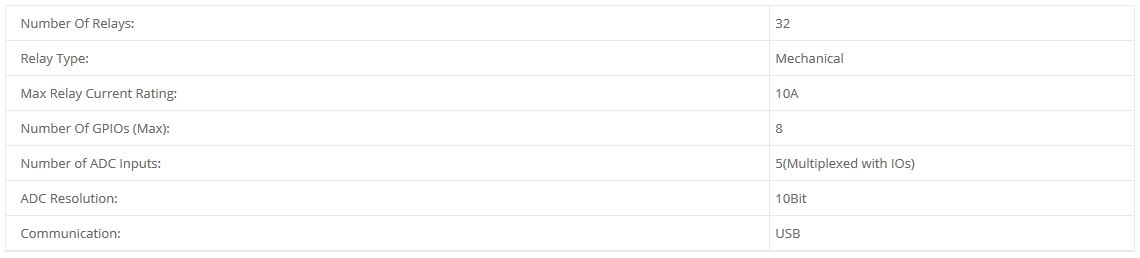

Specifications

Downloads

• Numato Lab USB CDC Driver
• User Manual

Sample Code ( language )

• VCExpress2008 - C / Windows
• VCExpress2010 - C / Windows
• VBExpress2008 - Visual Basic / Windows
• VBExpress2010 - Visual Basic / Windows
• Visual Basic 6 - Visual Basic / Windows
• Visual C++ 6 - C / Windows
• Python - Python / Windows
• NetBeans - Java / Any
• Visual Studio 2012 - C# / Windows
• AutoHotkey - AutoHotkey / Windows
• MS Excel 2010 - VBA / Windows
• MS Word 2010 - VBA / Windows
• JustBASIC - Visual Basic / Windows
• Node.js - Javascript / Windows
• AutoIt - AutoIt / Windows
• Labview - Labview / Any
• Perl - Perl / Linux
• Perl - Perl / Windows
