Panel Mount USB Cable - B Male to B Female
  • Panel Mount USB Cable - B Male to B Female
  • Panel Mount USB Cable - B Male to B Female

Panel Mount USB Cable - B Male to B Female

:CAB06003
€5.90
Tax included
Quantity

  • DESCRIPTION

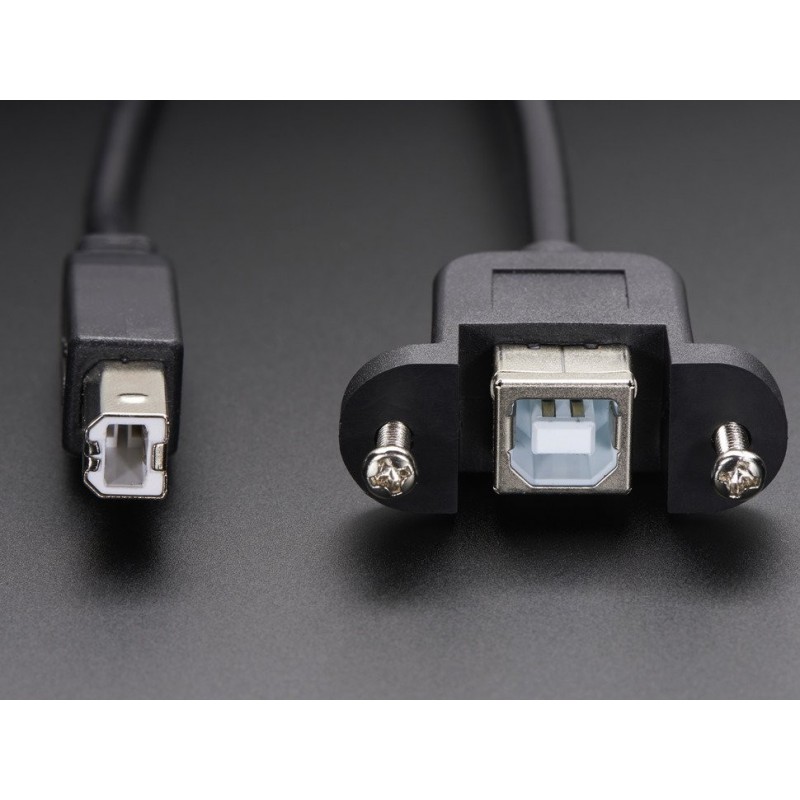

    This handy USB extension cable will make it easy for you to enclose a device that has a B type port. We think this would be most handy when putting an Arduino in a box.

    The jack half has two mounting 'ears' with M3 screws installed, 1.1" / 29mm apart. Can be used with box walls 0.125" to 0.25" wide. If you have a thinner-walled box, simply swap out the M3 screws for shorter ones. Cable, from connector to connector, is 13" long.

  • TECHNICAL DETAILS

    • Panel mount USB type B socket with USB type B plug at cable end
    • 28 AWG data, 24 AWG power wires
    • Length: 330mm / 13"
    • Two M3 mounting screws, 1.1" / 29mm apart
CAB06003
