Waterproof Ultrasonic Sensor
  • Waterproof Ultrasonic Sensor
  • Waterproof Ultrasonic Sensor
  • Waterproof Ultrasonic Sensor

Waterproof Ultrasonic Sensor

:SEN07011
€3.95
Tax included

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



Overview

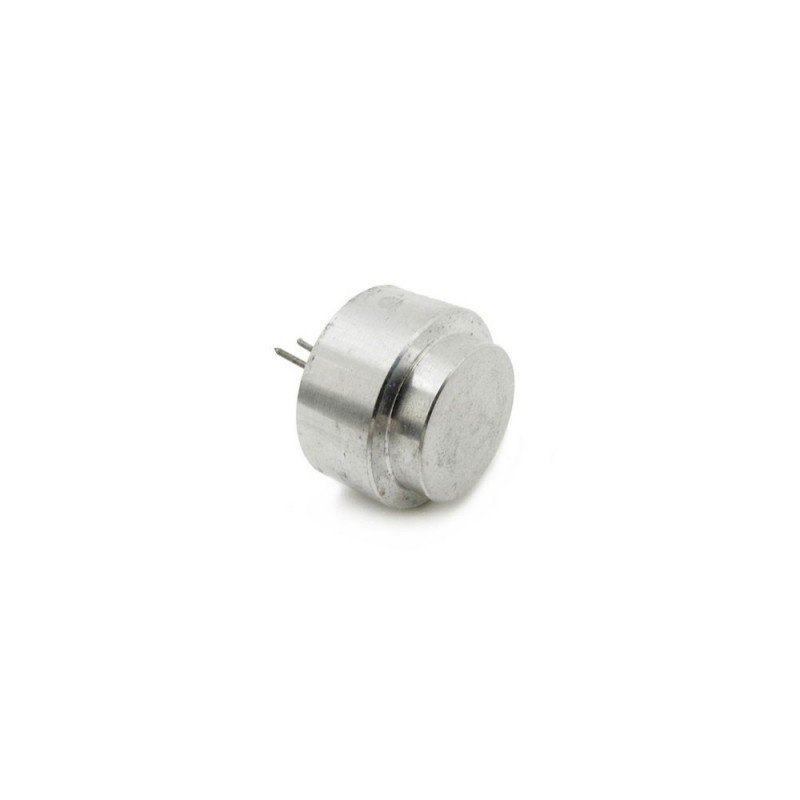

This is a waterproof ultrasonic sensor.It is 16mm.



Features

  • Waterproof

  • Emit and receive integrative



Specification

  • Center frequency(KHz): 40.0±1.0

  • Transmitting Sound Pressure Level(dB) (30cm /10Vrms Sine Wave): ≥96

  • Receive Sensitive(dB) dB/v/μbar (0dB＝V/Pa): ≥-82

  • Directivity(deg)(º):75±10 Ringing(ms): ≤1.72

  • Function : Transmitter / Receive

  • Capacitance (pF)(25℃): 1800±10%

  • Allowable Input Voltage(Vp-p) (40KHz):150

  • Operating Temperature (℃): -30~+70

  • Storage Temperature (℃): -40~+85

  • Metals of case: Aluminum Terminal: PIN

SEN07011
