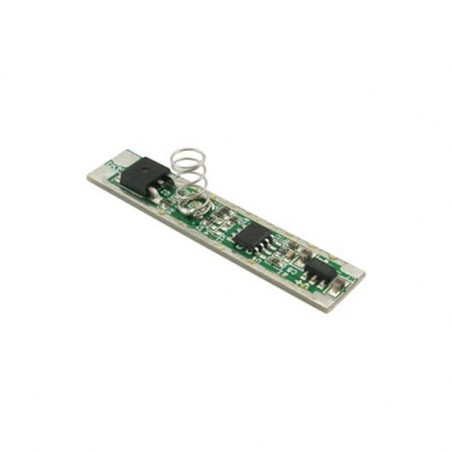

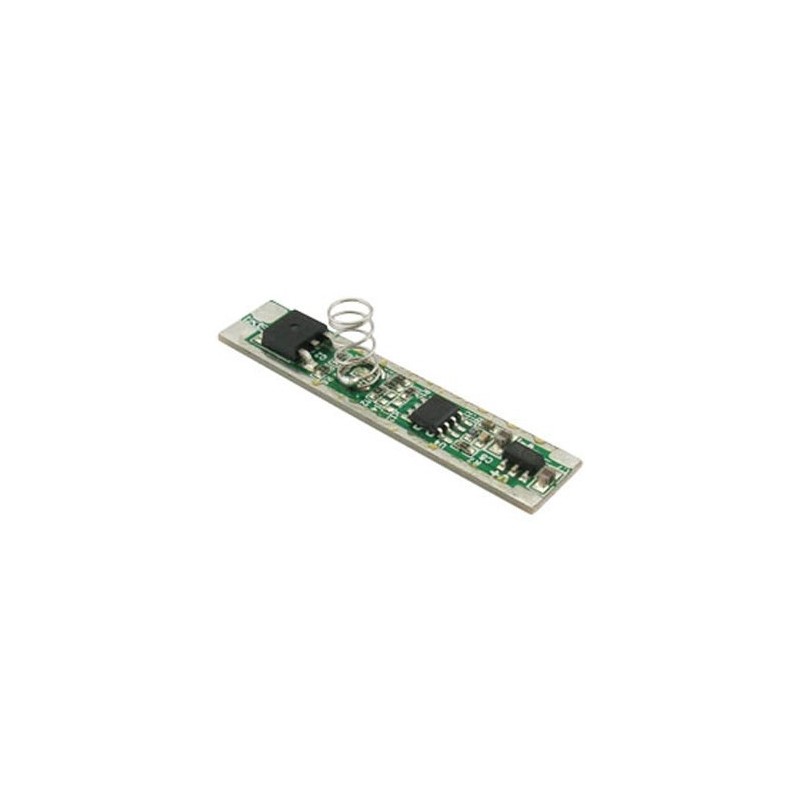

Dimmer touch to aluminum profiles 4 st: OFF, 25%, 50%, 75%, 100%

Touch dimmer / switch designed for direct mounting in AL profile. To control function does not use conductive connection with AL profile, but controlled by touching the diffuser (plexi) in place of the switch. Instead indicates glowing blue LED.

Technical parameters:

Function: Dimmer - OFF, 25%, 50%, 75%, 100%, OFF = Cycle
Input voltage: 12 - 24 V DC
Max. current: 5 A
Max. Power: 60 W (12 V), 120 W (24 V)
Indications: Blue LED
Size: 40 x 10 mm
