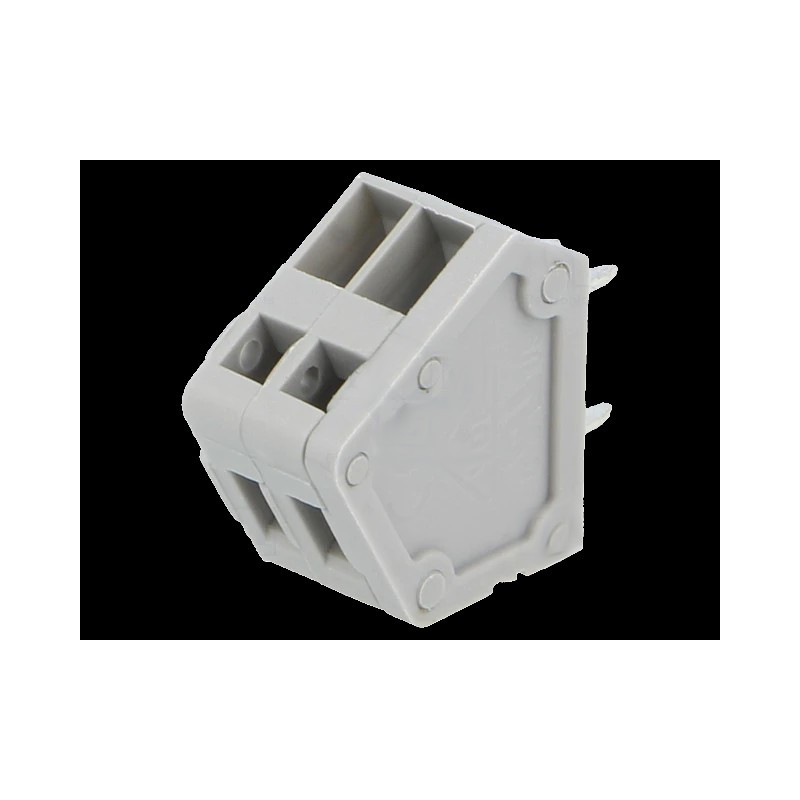

2 way Push-in Terminal block PCB 45º 2.54mm pitch

:CON04040
€0.45
Tax included

2-way PCB connector, can work with temperatures between -40 ° C and 150 ° C, withstands rated voltages of 150V and currents of 4A, etc.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

SPECIFICATION

Manufacturer

DEGSON ELECTRONICS


Type of connector

PCB terminal block


Spatial orientation

angled


Contacts pitch

2.54mm


Number of ways

2


Mechanical mounting

on PCBs


Electrical mounting

spring clamp,  THT


Connector

terminal


Contact plating

tinned


Current rating

4A


Height

11.72mm


Colour

grey


Rated voltage

150V


Body material

PA66


Length

6.53mm


Contact material

phosphor bronze


Operating temperature

-40...105°C


Depth

12.35mm


Flammability rating

UL94V-0


Type of pin configuration

1x2


Conform to the norm

CE,  UL


Wire size

28AWG...20AWG


Wire cross section

200...500µm2



Additional information

  • Gross weight: 0.824 g
  • Manufacturer part number: DG240W-2.54-02P-11-00A(H)

TECHNICAL INFORMATION

https://www.botnroll.com/img/cms/dg240w.pdf

CON04040
