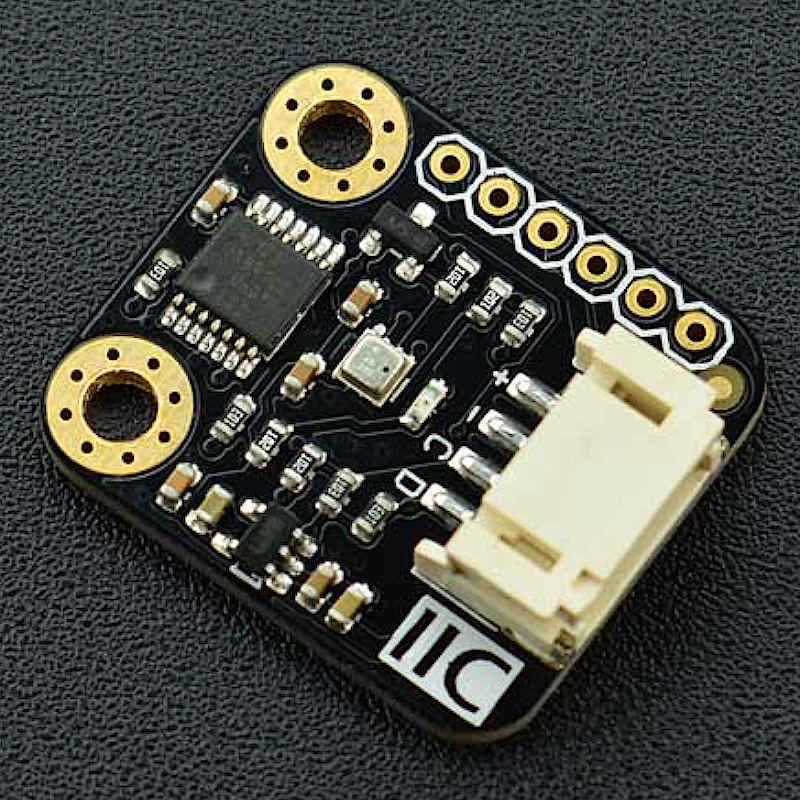

Gravity: I2C BME280 Environmental Sensor - DFRobot SEN0236

:SEN06090
€19.35

BME280 is an environmental sensor that integrates onboard temperature sensor, humidity sensor and barometer. The sensor is of high precision, multiple functions, and small size etc. It provides both SPI and I2C interfaces, which make it easy to make a fast prototypes. It can be widely used in environmental monitoring, story height measurement and Internet of Things (IoT) control and so on.

If you want to know more about this product, please check its Wiki Page.

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Introduction

BME280 is an environmental sensor that integrates onboard temperature sensor, humidity sensor and barometer. The sensor is of high precision, multiple functions, and small size etc. It provides both SPI and I2C interfaces, which make it easy to make a fast prototypes. It can be widely used in environmental monitoring, story height measurement and Internet of Things (IoT) control and so on.

Gravity I2C BME280 Environmental Sensor has based on BoSCH newest MEMS sensor (Micro-Electro-Mechanical System). It is very stable to compare with other kind of sensors, especially the air pressure measurement, the offset temperature coefficient is ±1.5 Pa/K, equiv. to ±12.6 cm at 1 °C temperature change. Therefore, the stable and multi-function make BME280 become a good choice in many scenes.



Features

  1. Compatible with 3.3V/5V microcontrollers

  2. Environmental monitoring: temperature, humidity and barometer

  3. Gravity I2C interface and reserve XH2.54 SPI interface

  4. Small size, convenient to install



Applications

  1. Context awareness, e.g. skin detection, room change detection

  2. Home automation control (control heating, venting, air conditioning (HVAC))

  3. Internet of things

  4. GPS enhancement (e.g. time-to-first-fix improvement, dead reckoning, slope detection)

  5. Indoor navigation (change of floor detection, elevator detection)

  6. Outdoor navigation, leisure and sports applications

  7. Weather forecast

  8. Vertical velocity indication (rise/sink speed)



Specification

  1. Working Voltage:3.3V~5.0V

  2. Working Current:2mA

  3. Working Temperature:-40℃~+85℃

  4. Temperature Measuring Range: -40℃~+85℃, resolution of 0.1℃, deviation of ±0.5℃

  5. Humidity Measuring Range: 0~100%RH, resolution of 0.1%RH, deviation of ±2%RH

  6. Pressure Measuring Range: 300~1100hPa

  7. Humidity Sampling Time: 1s

  8. Dimension: 22 * 25 mm/ 0.87 * 0.98 inches

  9. Weight: 12g



Documents



Shipping List

  1. Gravity: I2C BME280 Environmental Sensor (Temperature, Humidity, Barometer) x1

  2. XH2.54-6pin Header x1

  3. Gravity-4P I2C/ UART Sensor Wire x1



Arduino I2C Connection Diagram

Arduino I2C Connection



Arduino SPI Connection Diagram

Arduino SPI Connection
