SHT31 Outdoor Temperature & Humidity Sensor (-40?~125?) I2C - DFRobot SEN0385

:SEN06083
€19.11

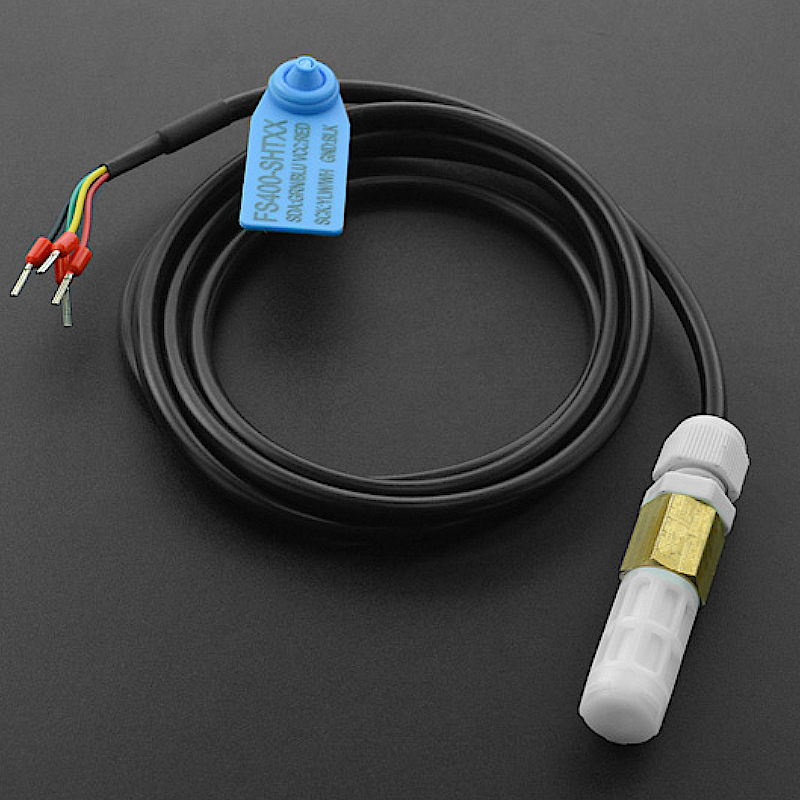

This is a SHT31 Temperature & Humidity sensor housed in a weather-proof enclosure. The sensor is designed to be waterproof so you can use it safely in outdoor projects. Please note that although the sensor is waterproof, it is not suggested to submerge it in water.

If you want to know more about this product, please check out his Wiki Page.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Introduction

This is an SHT31 Temperature & Humidity sensor housed in a weather-proof enclosure. The sensor is designed to be waterproof so you can use it safely in outdoor projects. Please note that although the sensor is waterproof, it is not suggested to submerge it in water. For in-water measurement, the DS18B20 Sensor is highly recommended.

Thanks to Sensirion’s CMOSens® technology, highly integrated capacitive humidity sensing components, and band-gap temperature sensing components, the SHT31 offers high reliability and long-term stability with low power consumption, fast response, and strong anti-interference ability. The sensor supports I2C communication and is compatible with 3.3V/5V controllers like Arduino, micro: bit, and ESP32.

SHT31 is the standard version of the SHT3x series. It provides humidity accuracy ± 2%RH@0% RH~100% RH (at 25°C), and temperature accuracy±0.2°C@ 0°C ~90°C (typical).

Note: Although the temperature measurement range of the sensor is - 40 ~ 125 ℃, we recommend NOT to place the sensor at a temperature higher than 80 ℃ since its shell is made of PE material.



Features

  1. Weather-proof

  2. High precise, internal auto-calibrated, digital output

  3. Low power consumption, fast response, and strong anti-interference



Specification

  1. Operating Voltage: 3.3~5V

  2. Operating Current: <1.5mA

  3. Humidity Detection Range: 0%RH~100%RH

  4. Humidity Accuracy: ±2%RH@0%RH~100%RH(at 25℃)

  5. Temperature Detection Range: -40℃~125℃

  6. Temperature Accuracy: ±0.2℃@0℃~90℃ (Typical)

  7. Communication: I2C

  8. Cable Length: about 1m



Documents



Shipping List

  1. SHT31 Outdoor Temperature & Humidity Sensor (-40℃~125℃) - I2C x1
