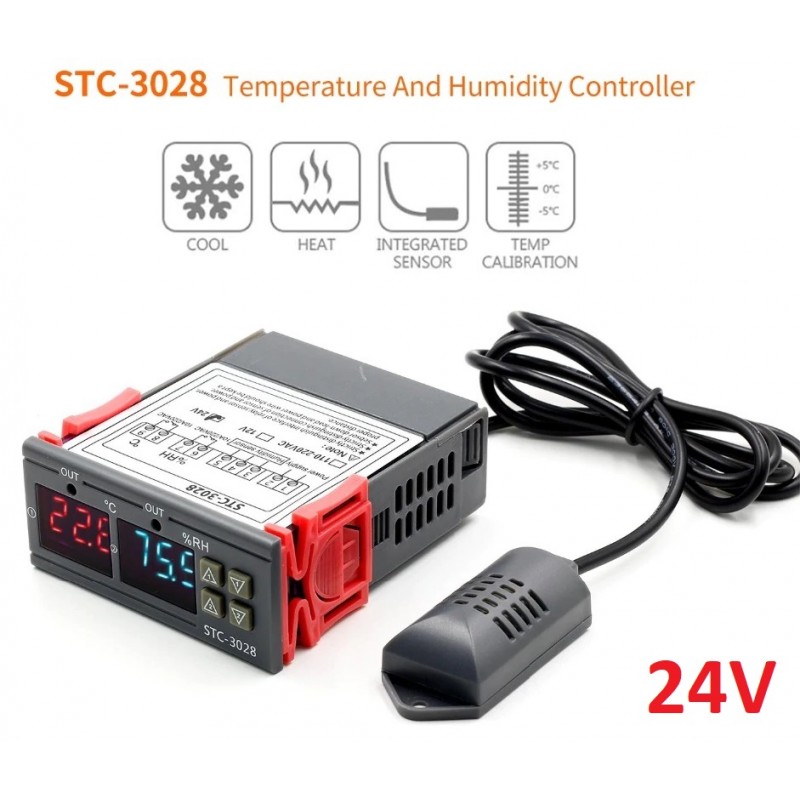

STC-3028 Temperature and Humidity Thermostat panel mount 24V 10A

:MRE02011
€25.95
Tax included
  • Temperature measuring range: 0~100ºC Celsius
  • Measuring humidity range: 00%RH~+100%RH
  • Accuracy: 0.1ºC Celsius
  • Power supply: 24Vdc
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Size



Product Specifications:

  • Switch the modes between cool and heat;
  • Control temperature by setting the temperature value and the difference value;
  • Temperature calibration;
  • Refrigerating control output delay protection;
  • Alarm when temperature exceeds temperature limit or when sensor error.
  • Temperature measuring range: 0~100ºC Celsius
  • Measuring humidity range: 00%RH~+100%RH
  • Accuracy: 0.1ºC Celsius
  • Power supply: 24Vdc
  • Sensor: NTC sensor
  • Relay contact capacity: Cool (10A/240VAC); Heat (10A/240VAC)
  • Sensor length: 1 meter (include the probe)
  • Shell material:PC and ABS

Setup

Wiring Connections


Package Includes:
  • 1 X STC-3028 Digital Temperature Humidity Meter Thermostat Dual Display Thermometer Hygrometer
  • 1 X Sensor
