Panel Temperature Meter / -30 to +70 °C

:SEN06017
€11.90
Tax included

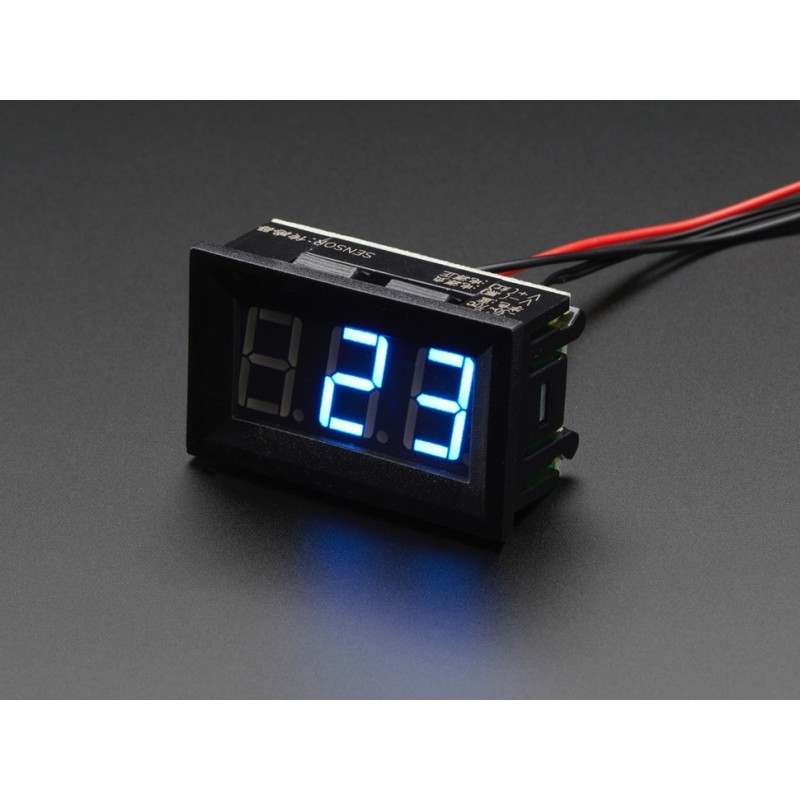

Put a temperature meter anywhere with this very handy display. This panel meter displays the temperature of the attached waterproof 1% thermistor in °C. It does require a DC voltage to run, at 4.5-30VDC. It has reverse polarity protection in case you swap the power leads by accident.

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Temperature sensor included!

  • DESCRIPTION

    To use, simply connect the thin red wire to a positive supply, and the thin black wire to ground. Then tape the black thermistor bulb to whatever you want to measure - or leave it loose to measure ambient temperature. The display has a microcontroller that will read thermistor resistance and display the corresponding temperature from -30°C to 70°C with 1 °C precision on a 3-digit 0.56" tall 7-segment display. The meter draws 3-4mA to power the microcontroller and display. This particular LED display is a nice vivid blue, which we found very readable. To mount to your enclosure, simply cut a 45.5mm × 26.5mm rectangle and snap it in.

    This meter can only display the temperature in Centigrade °C, it cannot be modified to °F and we do not have a version that is °F.



  • TECHNICAL DETAILS

    Dimensions:

    • Dimensions: 48x29x21mm
    • Digit size: 14mm/0.56" high, blue LEDs
    • Panel cutout: 45.5mm x 26.5mm
    • Power lead length: 15cm
    • Thermistor lead length: 12cm
    • Refresh rate: about 2 Hz

    Power specifications:

    • 4.5V to 30V DC input
    • 0.1V precision
    • 3-4mA draw
    • Blue LED display
    • Reverse polarity protected
SEN06017
