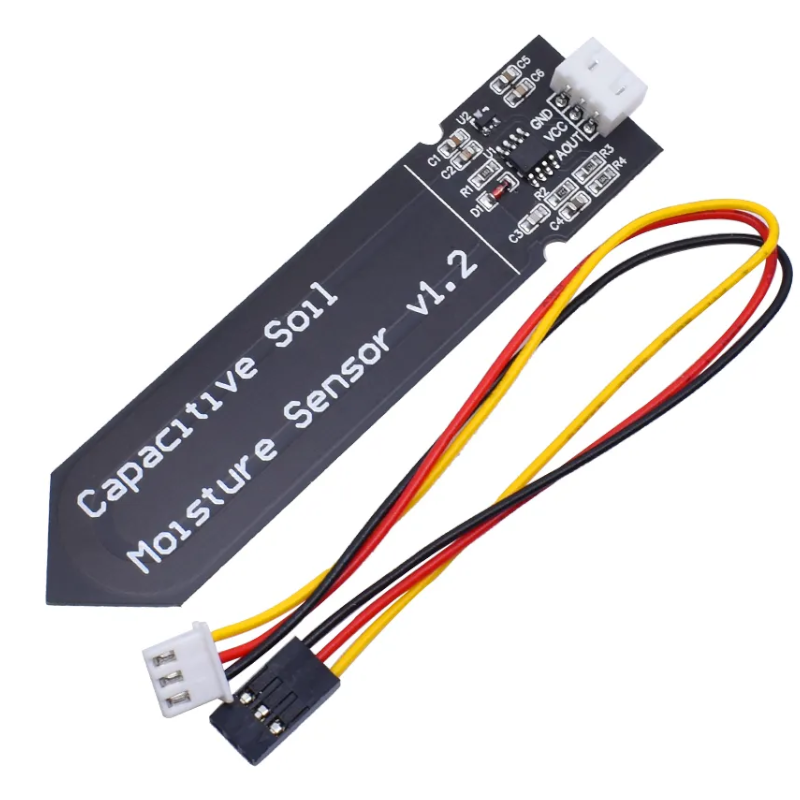

Gravity: Analog Capacitive Soil Moisture Sensor- Corrosion Resistant
  • Gravity: Analog Capacitive Soil Moisture Sensor- Corrosion Resistant
  • Gravity: Analog Capacitive Soil Moisture Sensor- Corrosion Resistant
  • Gravity: Analog Capacitive Soil Moisture Sensor- Corrosion Resistant
  • Gravity: Analog Capacitive Soil Moisture Sensor- Corrosion Resistant
  • Gravity: Analog Capacitive Soil Moisture Sensor- Corrosion Resistant

Gravity: Analog Capacitive Soil Moisture Sensor- Corrosion Resistant

:SEN06020
€10.08
€7.58 Save €2.50
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

INTRODUCTION

This product measures soil mositure levels by capacitive sensing, rather than resistive sensing like other types of moisture sensor. It is made of a corrosion resistant materal giving it a long service life. Insert it into soil and impress your friends with the real-time soil moisture data!

The product includes an on-board voltage regulator which gives it an operating voltage range of 3.3 ~ 5.5V. It is compatible with low-voltage MCUs (both 3.3V and 5V logic). To make it compatible with a Raspberry Pi, an ADC converter is required.

This sensor is compatible with our 3-pin "Gravity" interface, which means it can be directly connected to the Gravity I/O Expansion Shield.

The following image shows an example project - a device that notifies you when a plant needs to be watered.



FEATURES

  • Supports Gravity 3-Pin Interface
  • Analog Output

APPLICATIONS

  • Gardening & Farming
  • Moisture Detection
  • Intelligent Agriculture

SPECIFICATION

  • Operating Voltage: 3.3 ~ 5.5 VDC
  • Output Voltage: 0 ~ 3.0VDC
  • Interface: PH2.0-3P
  • Dimension: 98mm * 23mm (3.86in x 0.905in)
  • Weight: 15g

DOCUMENTS

SHIPPING LIST

  • Capacitive Soil Moisture Sensor x1
  • Analog Sensor Cable x1
SEN06020
