IDL-800 Digital Trainer Lab
  • IDL-800 Digital Trainer Lab

IDL-800 Digital Trainer Lab

: FER02007
€665.85
€625.20 Save €40.65

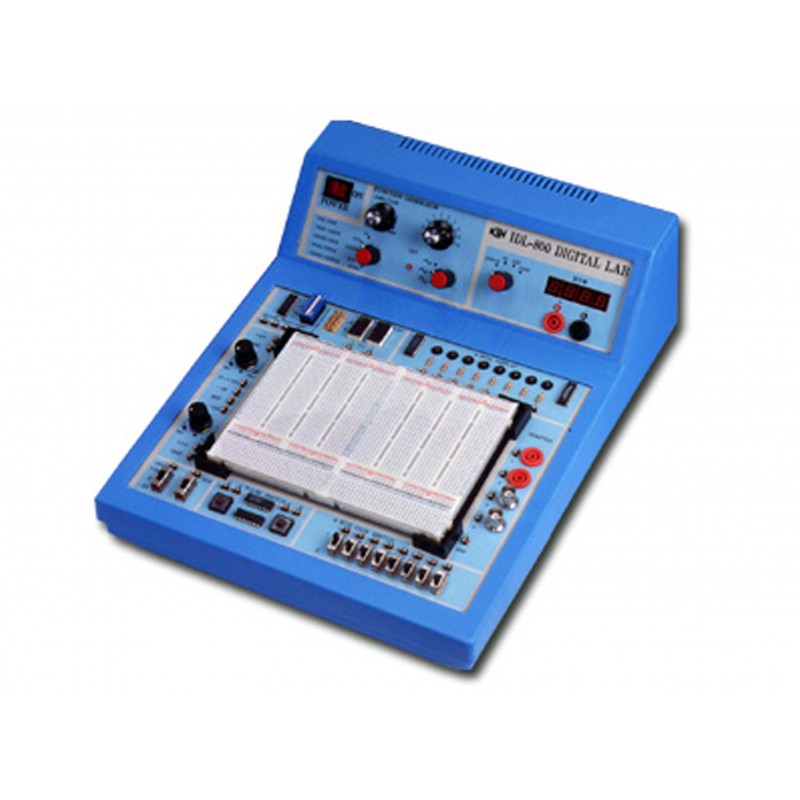

The IDL-800 Digital Lab offers a unique platform on which digital electronics circuits may be constructed with speed and ease. The system combines simple, easy to use, features with a versatile solderless breadboard area.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Specifications

DC Power Supply +5V at 1A
-5V at 100mA
0V to +15V and 0V to -15V variable at upto 300mA
Full short protection is provided as is a mains switch with power on indicator
Function Generator Five frequency ranges:
1Hz to 10Hz
10Hz to 100Hz
100Hz to 1KHz
1KHz to 10KHz
10KHz to 100KHz
Sine wave output: 0 to 8V peak to peak variable
Triangle wave output: 0 to 6V peak to peak variable
Square wave output: 0 to 8V peak to peak variable
Digital Voltmeter (DVM) 3 1/2 digit LED display
Four voltage ranges:
0V to 199.9V
0V to 19.99V
0V to 1.999V
0V to 199.9mV
Input impedence: 10Mohm for any range
Logic Switches Eight robust debounced HI/LO slide switches
Function Switches Two robust slide switches each switch between +5V and -5V
Pulse Switches Two push-button pulse switches
Logic Indicators Eight buffered LED logic indicators
Seven-Segment Displays Two common-cathode seven-segment LED displays
Solderless Breadboard 1896 interconnected tie points, accepting all DIP devices, components with leads and solid wires of AWG 22 (0.3 to 0.8mm)
Accessories Power lead and user manual
Power Supply 110/120V AC or 220/240V AC (please specify when ordering) 50/60Hz
Physical Characteristics Dimensions: 360mm (width), 480mm (depth), 200mm (height)
Weight: 4.2kg
FER02007
