Step Motor Driver 3A - TB6560HQ

:MOT01051
€9.72

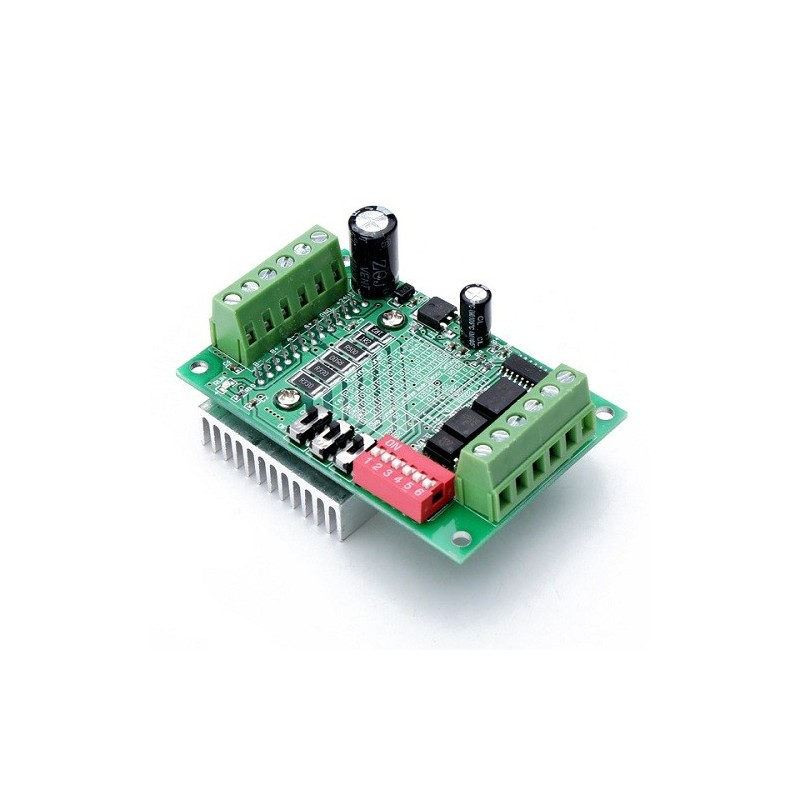

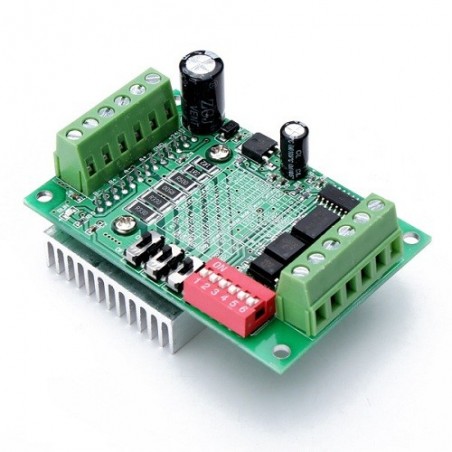

The TB6560 single-motor driver board is based on TB6560AHQ chip. It will significantly increase torque and ease of configuration of larger motors. Cheap and great driver for CNC or 3D printer

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

The TB6560 single-motor driver board is based on TB6560AHQ chip. It will significantly increase torque and ease of configuration of larger motors. Cheap and great driver for CNC or 3D printer

  •  the current level adjustable to meet your various application needs.
  •  the Automatic half-decay adjustable.
  •  6N137 high-speed optical coupling, to ensure a high speed not step out.
  •  thick tooth radiators, good heat dissipation.

SPECIFICATION

  •  Working voltage :DC 10V-35V.
  •  Recommend Switching Power Supply DC24V
  •  6N137 high-speed OptoCoupler , to ensure a high speed without step out.
  •  New original Toshiba TB6560AHQ chip, low-voltage shutdown, of overheating parking and over-current protection circuit to ensure optimal performance.
  •  Rated output: ± 3A  ,peak 3.5A.
  •  For 42,57,86 Stepper within 3A  2/4 -phase / 4 wire / 6 wire stepper motor, not fit for more than 3A stepper motor.
  •  Automatic half-decay.
  •  Excitation Mode: synchronizing, half step, 1/8 step, 1/16 step, a maximum of 16 segments.
  • Dimensions: 50 x 75 x 35 (mm)     2 x 3 x 1.4 (inch)



FEATURE

  •  the current level adjustable to meet your various application needs.
  •  the Automatic half-decay adjustable.
  •  6N137 high-speed optical coupling, to ensure a high speed not step out.
  •  thick tooth radiators, good heat dissipation.
