Multiple DC-DC Step-Down 3.3V/5V/12V/adj. - LM2596

: FAL08069
€10.53

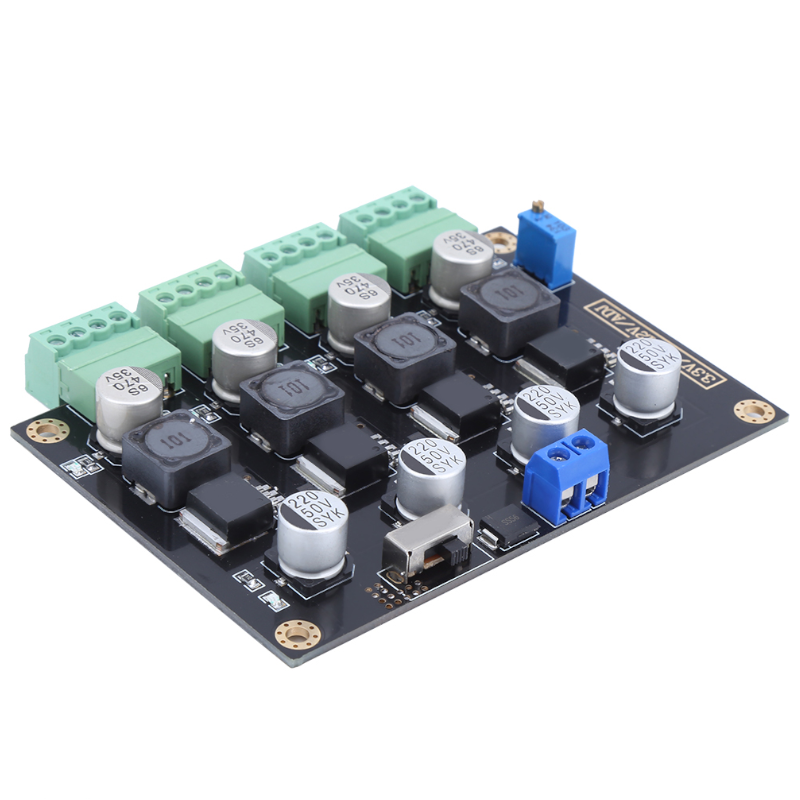

This DC-DC step-down has three fixed outputs (3.3V, 5V and 12V) and an adjustable one that can be adjusted with the built-in potentiometer on the board.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description

LM2596 is a step-down power supply management monolithic switching voltage regulation. The device, which can output 3A drive current, has good linearity and load adjustment section features. This module integrates 4LM2596-ADJ and can output four groups independently to adjust the power supply, the modules shall be arranged and wired in strict accordance with the power supply circuit design specifications.

Generous, using the chip aluminum electrolytic capacitor, high Q value inductor to ensure the output. The voltage is stable and the back of PCB is open for heat dissipation of LM2596 chip. Suitable for student competition module and individual project development



Product parameters

Module name: LM2596 multiplex switching power supply

Module size: 101MM X 68MM

Power supply range: 5V-40V

Special note: the output voltage of module ADJ is generally lower than in the power supply voltage of about 1V adjustable in the circuit, the upper limit of single circuit current of the module is 3A, and the total current shall not exceed 5A



Features:

  1. Buck power management monolithic integrated circuit switching voltage regulator, capable of outputting 3A drive current

  2. This product has good linearity and load regulation characteristics, suitable for student competition modules and personally project development.

  3. This module integrates 4 LM2596‑ADJ, which can output four groups of independent adjustable power supplies. The module is laid out and wired in strict accordance with the design specifications of the power supply circuit.

  4. Generous materials, using SMD aluminum electrolytic capacitors, high‑Q high‑power inductors to make sure stable output voltage.

  5. The window treatment on the back of the PCB board is more conducive to the heat dissipation of the LM2596 chip



Details:

  1. The window treatment on the back of the PCB board is more conducive to the heat dissipation of the LM2596 chip.

  2. Buck power management monolithic integrated circuit switching voltage regulator, capable of outputting 3A drive current

  3. Generous materials, using SMD aluminum electrolytic capacitors, high‑Q high‑power inductors to make sure stable output voltage.

  4. This module integrates 4 LM2596‑ADJ, which can output four groups of independent adjustable power supplies. The module is laid out and wired in strict accordance with the design specifications of the power supply circuit.

  5. This product has good linearity and load regulation characteristics, suitable for student competition modules and personally project development.

FAL08069
