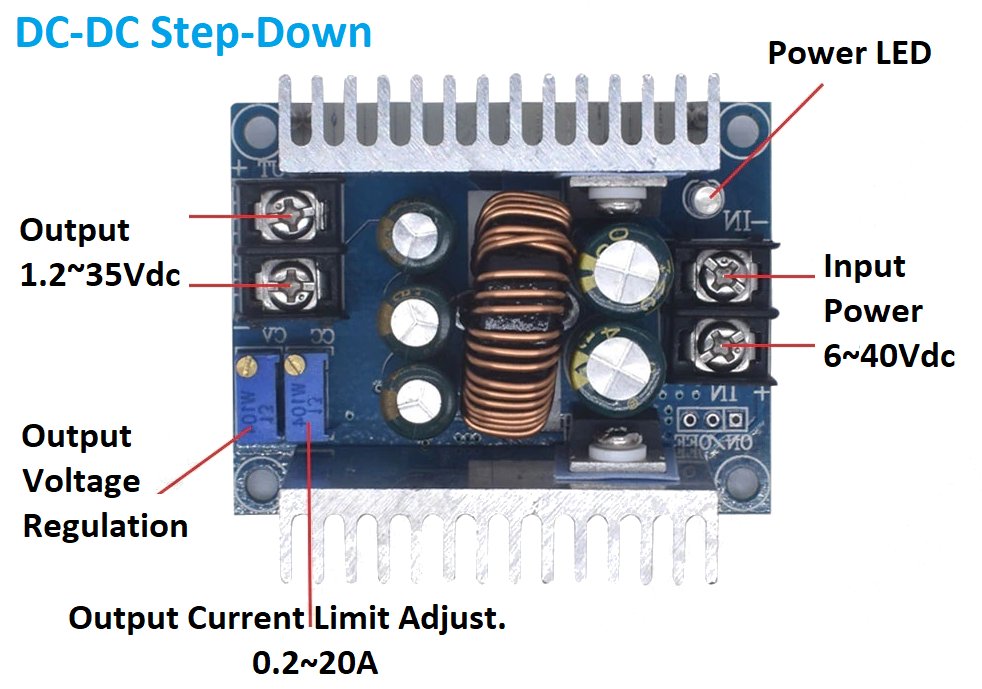

DC-DC Step Down with 6~40Vdc input and 1.2~36Vdc output.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Output current: maximum 20A within 15A ( add fan for heat dissipation if the temperature of the power tube exceeds 65ªC, and derate the output voltage for high voltage )
Current limiting range: 0.2-20A ( adjustable) if the module excees 65ºC add a fan.
Lowest voltage difference: 3V
Operation frequency: 150KHz
Conversion efficiency: Typical value 96% efficiency depends on operating environment.
Output ripple: Ripple around 50mV ( without noise ) 20mbit/s bandwidth ( for reference only ) input 24V.
Operating temperature: 0ºC to +75ºC ( pay attention to the power cable temperature in actual use. If the temperature is too high, enhance heat dissipation or derating voltage.
Potentiometer adjustment direction: clockwise ( increase ), counterclockwise ( decrease ).
Output short circuit protection: ( instantaneous protection ) constant current ( the constant current value can not be short circuit for a lon time ).
Input reverse connection protection: None.
