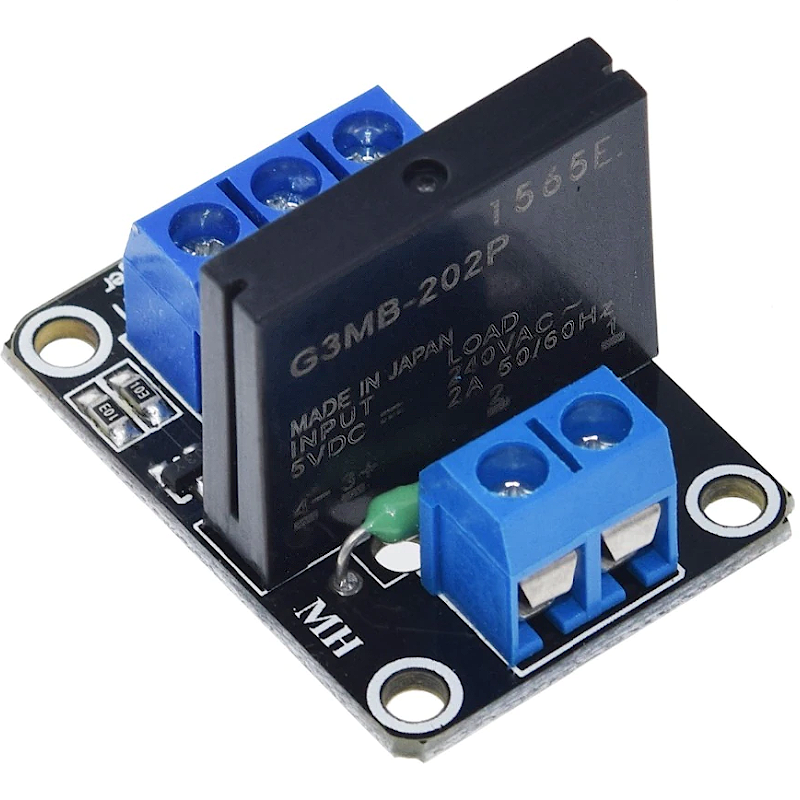

SOLID STATE RELAY MODULE 5V

: MRE03049
€2.85

Ideal board to control devices with high starting current consumption through 5V signals, such as Arduino boards (Uno, Mega,...).

Existing in 1/2/4/8 version solid state relays ( SSR ) that can switch loads up to 2A.

Please select the number of Channels:
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



5 V Omron solid state relay 240V 2A output with resistive fuse 240V 2A

  • Size:
  • 1 lane - 25*34*25mm
  • 2 lanes - 55*33*25
  • 4 lanes - 57*55*25
  • 8 lanes - 105*55*25

  • Input power: 5 V DC (160mA)
  • Input control signal voltage:
    • (0-2.5V state low relay off)
    • (3.3-5V State Relay on)



Module interface:
Inputs:

  • DC +: positive power supply (relay voltage)
  • DC -: Power negative
  • Ch: signal to trigger (high trigger efficiency)

Voltage version quiescent current working current trigger voltage trigger current

  • 1 lane - 5 V 0mA 12.5mA 3.3-5 V 2mA
  • 2 lanes - 5 V 0mA 22.5mA 3.3-5 V 2mA
  • 4 lanes - 5 V 0mA 48mA 3.3-5 V 2mA
  • 8 lanes - 5 V 0mA 90mA 3.3-5 V 2mA

MRE03049
