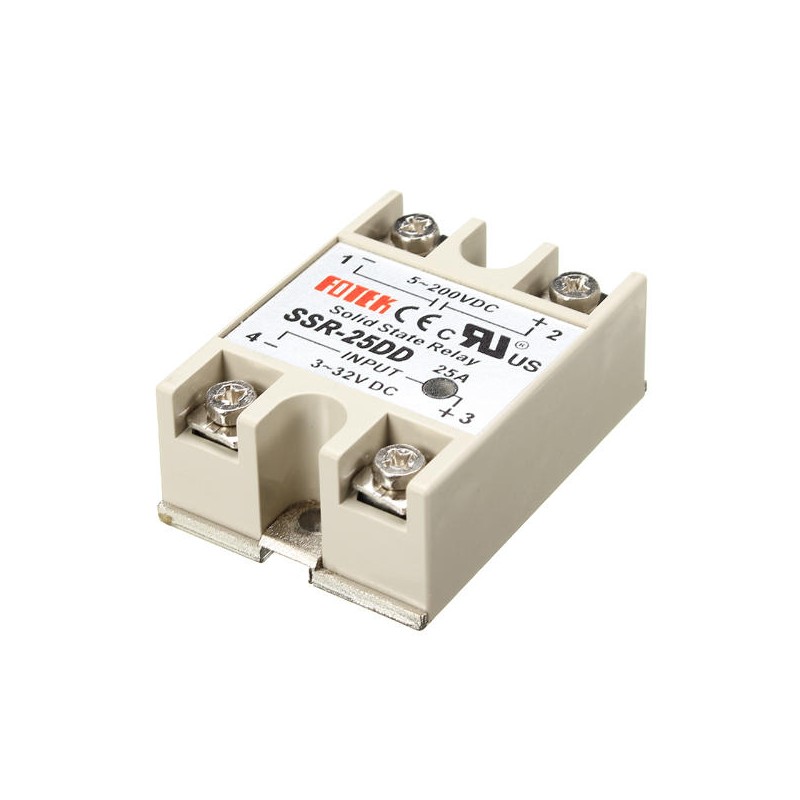

DC Solid State Relay - Output 5~200VDC 25A

: MRE03038
€5.65
  • Trigger current: 7.5mA/12V
  • Control current: 3~25mA
  • Control voltage: 3-32V (DC)
  • Switching voltage: ON>2.4V,OFF<1.0V
  • Load current: 25A
  • Load voltage: 5~200V (DC)
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description:

This SSR series solid-state relay uses flame retardant engineering plastic shell, epoxy resin sealing compounds and thread exit wiring. It has the features of high structural strength and high resistance to impact and vibration as well as small driven current on the output side. This product can easily connect to computer terminals and various digital programmable circuit interfaces. What’s more, it has been widely applied in automatic control field, such as petroleum and chemical apparatus, CNC machines, fitness equipments and recreation facilities.



Technical Parameters:

  • Dimensions: 63x45x22.5mm (length x width x height)
  • Shell material: reinforced ABS
  • Weight: 105g
  • Trigger current: 7.5mA/12V
  • Control current: 3~25mA
  • Control voltage: 3-32V (DC)
  • Switching voltage: ON>2.4V,OFF<1.0V
  • Load current: 25A
  • Load voltage: 5~200V (DC)
  • Current leakage:3.0mA
  • Response time:ON<10ms,OFF<10ms
  • Dielectric strength: 50MΩ/500VDC
  • Ambient temperature: -20℃~ +80℃
  • Installation: bolting down



Features:

  • LED work instruction
  • Adopt photoelectric isolation between input and output circuits
  • Suitable for harsh conditions which is erosive and damp and conditions requires explosion and dust proof
  • 100% overload current aging experiment





Documents:

MRE03038
