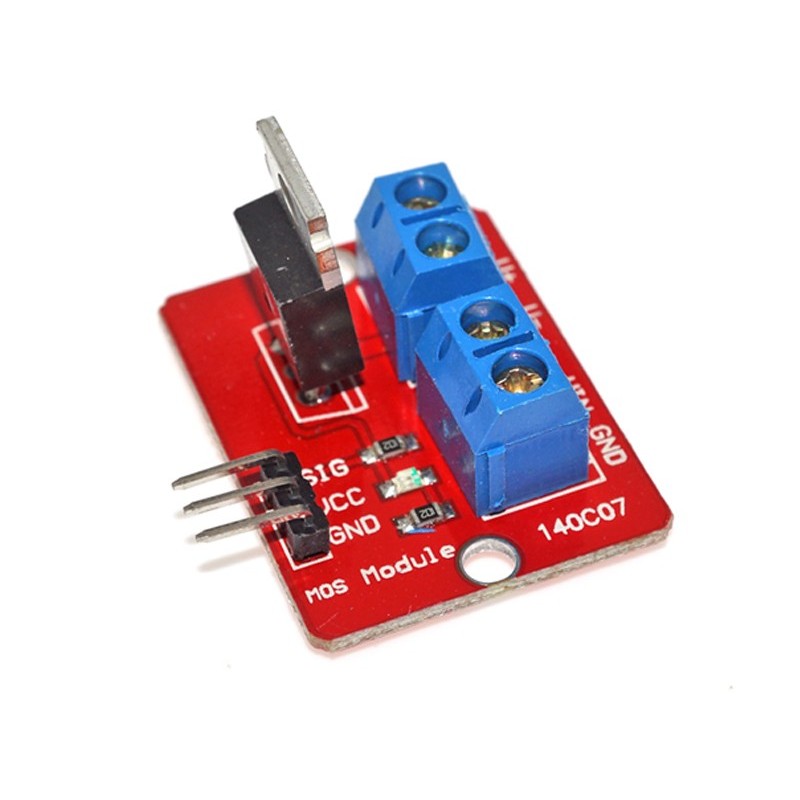

MOSFET IRF520 Driver Module

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

1.Size: 33*24mm.

2.Weight: 10g.

3.Voltage: 3.3V, 5V.

4.Ports: Digital Level.

5.Output load voltage :0-24V.

6.Output load current: <5A (1A above need to add heat sink).

7.Platform: Arduino, MCU, ARM.

8.Using original IRF520 Power MOS, you can adjust the output PWM.

9.It drives up to 24V allows the load, such as LED lights, DC motors, miniature pumps, solenoid valves.

10.PWM dimming LED can be used to achieve stepless dimming, variable speed motor.
