60W Solar Panel

: FAL09032
€36.50

To build a complete photovoltaic solar system, please consider the following products:

BAT01059 + FAL09014 + FAL11000

or:

BAT01076 + FAL11002

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Advantages:

  1. The efficiency of high-quality and high-efficiency monocrystalline silicon wafers can reach 17.01%.
  2. Shingled string welding process, beautiful and neat.
  3. Using tempered glass, high transparency.
  4. Anti-corrosion EVA effectively protects the battery panel.
  5. Strong and anti-wind and snow, unique technology to avoid freezing of water in the frame and deformation.
  6. Lightweight and flexible features can make it seamlessly integrated into your vehicle.
  7. Packed in a single carton, with protective corners on all four corners.
  8. OEM and ODM supported.



Specification:

Mechanical Data

Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃

Nominal Power 60W
Cell Type Monocrystalline
Module Efficiency 17.01%
Maximum Power Current (Imp) 3.30A
Maximum Power Voltage (Vmp) 18.21V
Open-circuit voltage (Voc) 21.73V
Short-circuit current (ISC) 3.48A
Maximum System Voltage 1000V
Output Tolerance ±3%
Cable 700mm / 2.5mm2
Connector Type MC4 / MC4 Compatible

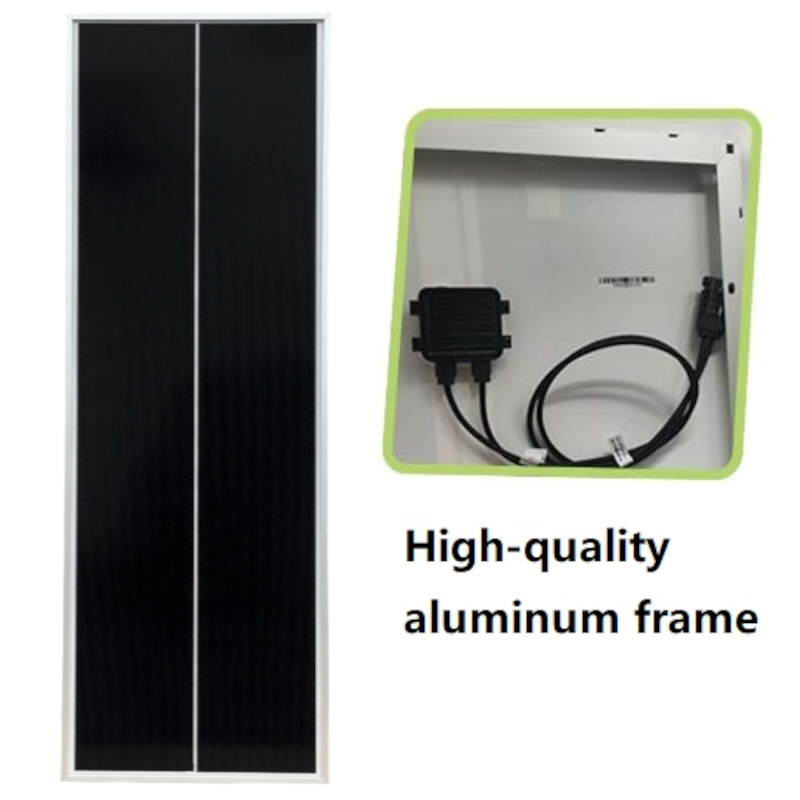

Module Structure Aluminum Frame / Glass / EVA /Backsheet (White)
Junction box rating ≥IP67
Number of Diodes One
Working Temperature -40℃~+80℃
                                                Packaging
Module Dimensions 1050*350*30mm
Module Weight 5.42kg
Package Single Package






Product Details:




This image has an empty alt attribute










Scope of application:

Prevent the loss of electricity: used on the roof of the car, charge the car battery at any time. Can prevent the car battery from losing electricity, and solve the situation that the car cannot be fired due to the battery loss caused by the long-term parking of the vehicle.

On-board electrical appliances: when using on-board electrical appliances, the original power of the car battery will not lose (car audio, navigator, driving recorder, exhaust fan, car blower, car refrigerator, cell phone, etc.)

Experimental power generation: DIY experiments for schools.
