POE HAT For Raspberry Pi 5, High Power with Cooling Fan - Waveshare 26399

:PCO01213
€19.27

The PoE HAT (F) is an 802.3af/at-compliant Power Over Ethernet(POE) expansion board for the Raspberry Pi 5. Suitable for use with a PoE router or switch that supports the IEEE 802.3af/at networking standard, the Raspberry PI can be networked and powered with only one network cable.

If you want to know more about this product, please check its Wiki Page.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

POE HAT for Raspberry Pi 5

Power Over Ethernet HAT For Raspberry Pi 5, Supports 802.3af/at Network Standard - 12V and 5V power outputs to support more peripherals




Features at a glance

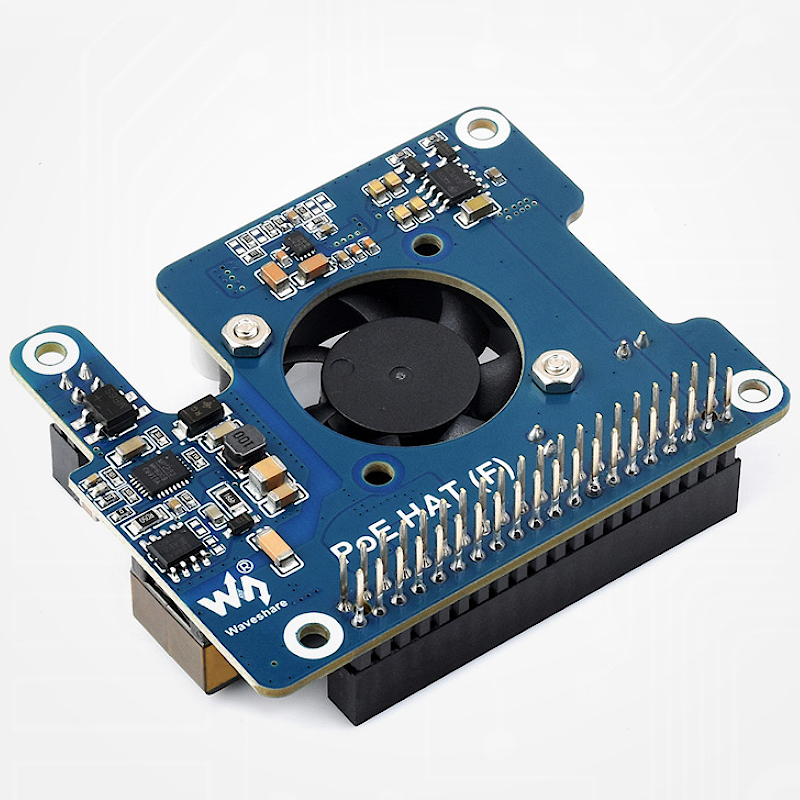

The PoE HAT (F) is a 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 5. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

  1. Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 5

  2. PoE (Power Over Ethernet) capability,IEEE 802.3af/at-compliant

  3. Fully isolated switched-mode power supply (SMPS)

  4. Onboard high speed active cooling fan, with metal heatsink, better heat dissipation



Specifications

PoE power input

37V ~ 57V DC in

Power output

GPIO header: 5V 4.5A (MAX)
2P header: 12V 2A (MAX)

Dimensions

56.5 × 70.0mm

Network standard

IEEE 802.3af/at PoE



Suitable for Raspberry Pi 5

Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs




Power Over Ethernet

Providing both network connection and power supply for your Raspberry Pi in one cable


* for reference only, the Raspberry Pi 5 and switch are NOT included.



Onboard 5V & 12V header outputs

5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power)
be able to power extra devices while providing stable power to Raspberry Pi


Active Cooling fan

Accelerate Cooling Effect, More Stable Performance


Onboard MP8759GD buck chip

Incorporates original voltage buck chip providing up to 5A under sufficient heat dissipation condition


How to Install

Attach the thermal tapes first, then install metal heatsink and fix the PoE HAT


* for reference only, please refer to the Package Content for detailed part list



Outline dimensions




Resources & Services




Package Content

Weight: 0.067 kg

  1. PoE HAT (F) x1

  2. Metal heatsink x1

  3. Thermal tape (3PCS) x1

PCO01213
