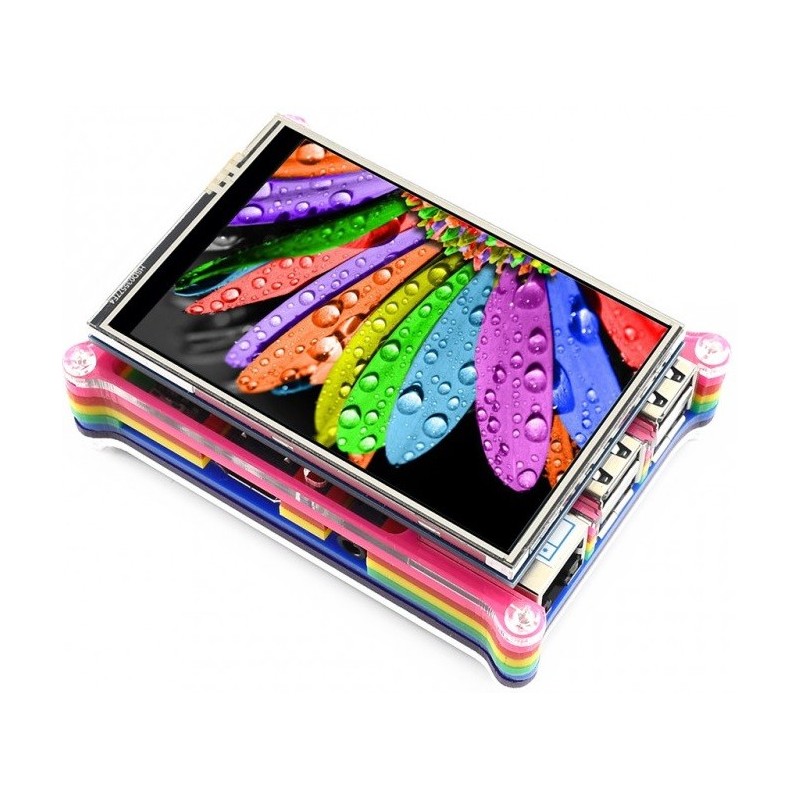

3.5inch RPi LCD (C), 480x320, 125MHz High-Speed SPI

: PCO01113
€19.95
Tax included
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features

  • 480x320 hardware resolution
  • Resistive touch control
  • Supports any revision of Raspberry Pi (directly-pluggable)
  • 125MHz High-Speed SPI signal transmission, clear & stable display effect
  • Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie)
  • Supports FBCP software driver as well, allows to config software resolution and set up dual-display
  • Size perfectly fits the Pi (Raspberry Pi B+/2B/3B/3B+)
  • High quality immersion gold surface plating
  • Combined with the Raspberry Pi (refresh rate up to 50Hz), allows you to:
    • Watch videos (multi formats like MP4)
    • Play video games (RetroPie, take a bite)
    • Take photos by touching (up to 17 camera modes)
    • Use software keyboard (system interaction without keyboard/mouse)

Key Parameters

LCD Type TFT
LCD Interface SPI
Touch Screen Type Resistive
Touch Screen Controller XPT2046
Colors 65536
Backlight LED
Resolution 480x320 (Pixel)
Aspect Ratio 8:5
Power Consumption TBD
Backlight Current TBD
Operating Temp. (℃) TBD

Interface

PIN NO. SYMBOL DESCRIPTION
1, 17 3.3V Power positive (3.3V power input)
2, 4 5V Power positive (5V power input)
3, 5, 7, 8, 10, 12, 13, 15, 16 NC NC
6, 9, 14, 20, 25 GND Ground
11 TP_IRQ Touch Panel interrupt, low level while the Touch Panel detects touching
18 LCD_RS Instruction/Data Register selection
19 LCD_SI / TP_SI SPI data input of LCD/Touch Panel
21 TP_SO SPI data output of Touch Panel
22 RST Reset
23 LCD_SCK / TP_SCK SPI clock of LCD/Touch Panel
24 LCD_CS LCD chip selection, low active
26 TP_CS Touch Panel chip selection, low active

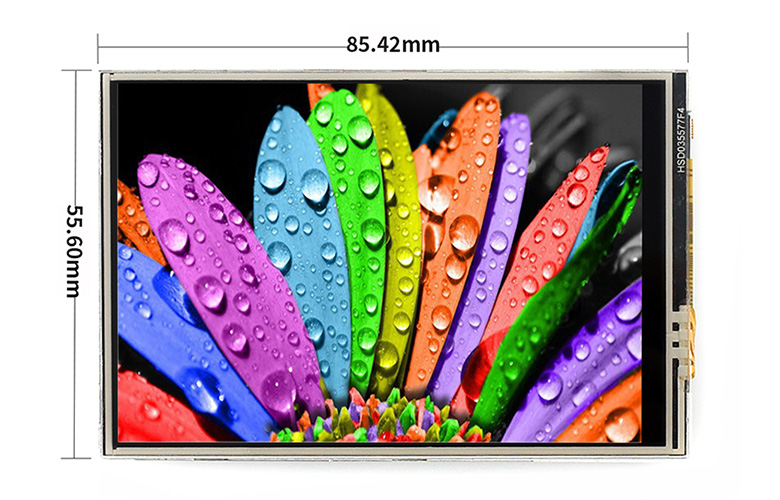

External Dimension

3.5inch-RPi-LCD-C-dimension

Development Resources

Wiki : www.waveshare.com/wiki/3.5inch_RPi_LCD_(C)

Selection Guide

Part Number Resolution Display Interface For use with Dimension (mm) Touch Panel Type Toughened Glass Cover Display Tech. Sound Popular Game Consoles How you feel
2.8inch RPi LCD (A) 320×240 SPI Pi As the Pi 3B+ Resistive × TFT × × ★☆
3.2inch RPi LCD (C) 320×240 High-Speed SPI Pi As the Pi 3B+ Resistive × TFT × × ★★
3.5inch RPi LCD (B) 480×320 SPI Pi As the Pi 3B+ Resistive × IPS × × ★★☆
3.5inch RPi LCD (C) 480×320 High-Speed SPI Pi As the Pi 3B+ Resistive × TFT × × ★★★
4inch RPi LCD (C) 480×320 High-Speed SPI Pi 96 × 61 Resistive × TFT × × ★★★
3.5inch HDMI LCD 480×320 HDMI Pi As the Pi 3B+ Resistive × IPS √ √ ★★★☆
4inch HDMI LCD (H) 480×800 HDMI Pi 99 × 58 Resistive × IPS √ × ★★★★
4.3inch HDMI LCD (B) 800×480 HDMI Not only Pi 106 × 68 Capacitive × IPS √ √ ★★★★☆
5inch HDMI LCD 800×480 HDMI Pi 121 × 78 Resistive × TFT × × ★★★★
5inch HDMI LCD (B) 800×480 HDMI Not only Pi 121 × 76 Resistive × TFT × × ★★★★☆
5inch HDMI LCD (G) 800×480 HDMI Not only Pi 121 × 76 Resistive × TFT √ √ ★★★★☆
5inch HDMI LCD (H) 800×480 HDMI Not only Pi 121 × 76 Capacitive √ TFT √ √ ★★★★☆
5.5inch HDMI AMOLED 1080×1920 HDMI Not only Pi 140 × 75 Capacitive √ AMOLED √ × ★★★★★
7inch HDMI LCD 1024×600 HDMI Pi 165 × 107 Resistive × IPS × × ★★★★
7inch HDMI LCD (B) 800×480 HDMI Not only Pi 165 × 107 Capacitive × TFT × × ★★★★☆
7inch HDMI LCD (C) 1024×600 HDMI Not only Pi 165 × 107 Capacitive × IPS × × ★★★★★
7inch HDMI LCD (H) 1024×600 HDMI Not only Pi 165 × 107 Capacitive ※ IPS √ √ ★★★★★
10.1inch HDMI LCD 1024×600 HDMI Pi 235 × 144 Resistive × TFT × × ★★★★
10.1inch HDMI LCD (B) 1280×800 HDMI Not only Pi 274 × 187 Capacitive √ IPS × × ★★★★★
10.1inch HDMI LCD (H) 1024×600 HDMI Not only Pi 257 × 162 Capacitive × TFT √ × ★★★★☆
11.6inch HDMI LCD (H) 1920×1080 HDMI Not only Pi 285 × 182 Capacitive √ IPS √ √ ★★★★★
13.3inch HDMI LCD (H) V2 1920×1080 HDMI Not only Pi 330 × 208 Capacitive √ IPS √ √ ★★★★★
15.6inch HDMI LCD (H) 1920×1080 HDMI Not only Pi 387 × 232 Capacitive √ IPS √ √ ★★★★★
15.6inch FHD Monitor 1920×1080 HDMI / Type-C Not only Pi 373 × 238 Capacitive √ IPS √ √ ★★★★★

Note :

  1. Pi 3B+ means Raspberry Pi 3 Model B+
  2. If the LCD is intended to play videos, please choose the one with HDMI display interface for better experience.
  3. Toughened Glass Cover ※: the 7inch HDMI LCD (H) (with case) features toughened glass cover, while the 7inch HDMI LCD (H)uses a normal screen cover

Have a look :
RPi LCD Comparing



PACKAGE CONTENT

Weight: 0.039 kg

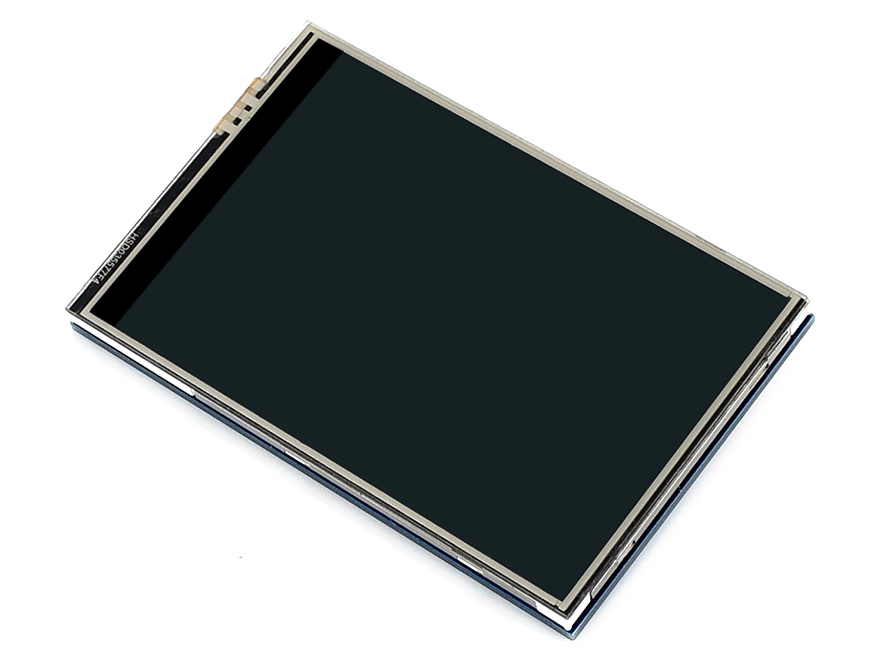

  1. 3.5inch RPi LCD (C) x1
  2. Touch pen x1
  3. RPi screws pack (2pcs) x1

    13.5inch-RPi-LCD-C-1_93.jpg 2Touch-pen_93.jpg 3RPi-screws-pack-16-x2.jpg
