Kit of 62 Components for Electronics I - 2nd Year

: ARD04087
€19.50
Tax included

62-piece electronic components kit designed for practical Electronics I – 2nd Year classes, including transistors, diodes, LEDs, capacitors, integrated circuits, voltage regulators and potentiometers for circuit experiments and assembly.

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

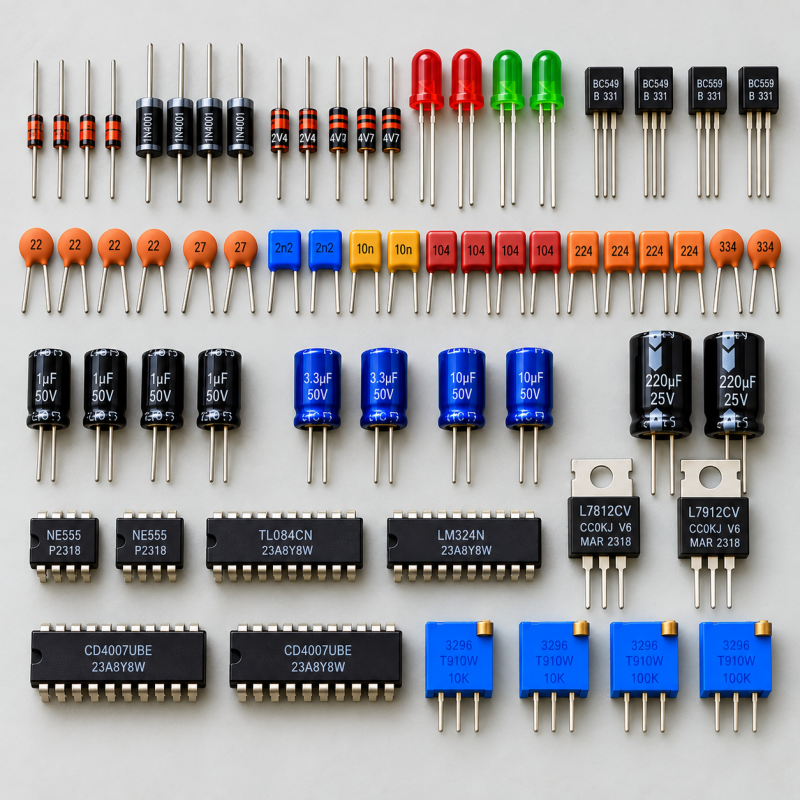

The ARD04087 62-Piece Electronics Components Kit for Electronics I – 2nd Year includes a selection of electronic components intended for practical exercises, experiments and circuit assembly as part of Electronics studies.

The kit includes NPN and PNP transistors, signal and rectifier diodes, Zener diodes, LEDs, a range of ceramic and electrolytic capacitors, integrated circuits such as the NE555, TL084, CD4007 and LM324, LM7812 and LM7912 voltage regulators, as well as 10 kΩ and 100 kΩ linear potentiometers.

The variety of components allows students to work with different analogue and digital electronics concepts, including amplification, timing, rectification, voltage regulation, filtering, biasing and experimental circuit assembly.



Ref.ProductQty.
BC549-CDI BC549 Transistor – NPN; 30V; 100mA; 500mW; TO92 2
BC559-CDI BC559 Transistor – PNP; 30V; 100mA; 500mW; TO92 2
CEL08050 1N4148 Diode – 100V; 200mA; DO-35 4
CEL08034 1N4001 Diode – 50V; 1A; DO-41 4
BZX55C2V4 2V4 Zener Diode; 0.5W; DO-35 2
BZX55C4V7-CDI 4V7 Zener Diode; 0.5W; DO-35 2
CEL03060 5mm Diffused Red LED 2
CEL03061 5mm Diffused Green LED 2
CEL02008 50V Ceramic Capacitor – 22pF 4
CC-27 50V Ceramic Capacitor – 27pF 2
CC-222/500 Ceramic Capacitor – 2.2nF 2
CC-10N 50V Ceramic Capacitor – 10nF 2
CEL02002 50V Ceramic Capacitor – 100nF 4
CM-220N-Y5V Ceramic Capacitor – 220nF 4
02040203 50V Ceramic Capacitor – 330nF 2
CE-1/50PHT-TAS 50V Electrolytic Capacitor – 1µF 4
TPF1H3R3MPN0511U 50V Electrolytic Capacitor – 3.3µF 2
CE-10/50PHT-Y 50V Electrolytic Capacitor – 10µF 2
TCE-220/25PHT-Y 25V Electrolytic Capacitor – 220µF 2
CEL08016 NE555 Timer 2
TL084CN TL084CN – Quad Operational Amplifier, 3MHz 1
CD4007UBE CD4007 Inverter 2
CEL08037 LM324 – Quad Operational Amplifier, 12MHz 1
L7812CV 7812 Voltage Regulator – 12V; 1.5A; TO-220 1
L7912CV 7912 Voltage Regulator – -12V; 1.5A; TO-220 1
T910W-10K Vertical Linear Multi-Turn Trimmer Potentiometer – 10kΩ; 10%; 500mW 2
T910W-100K Vertical Linear Multi-Turn Trimmer Potentiometer – 100kΩ; 10%; 500mW 2
