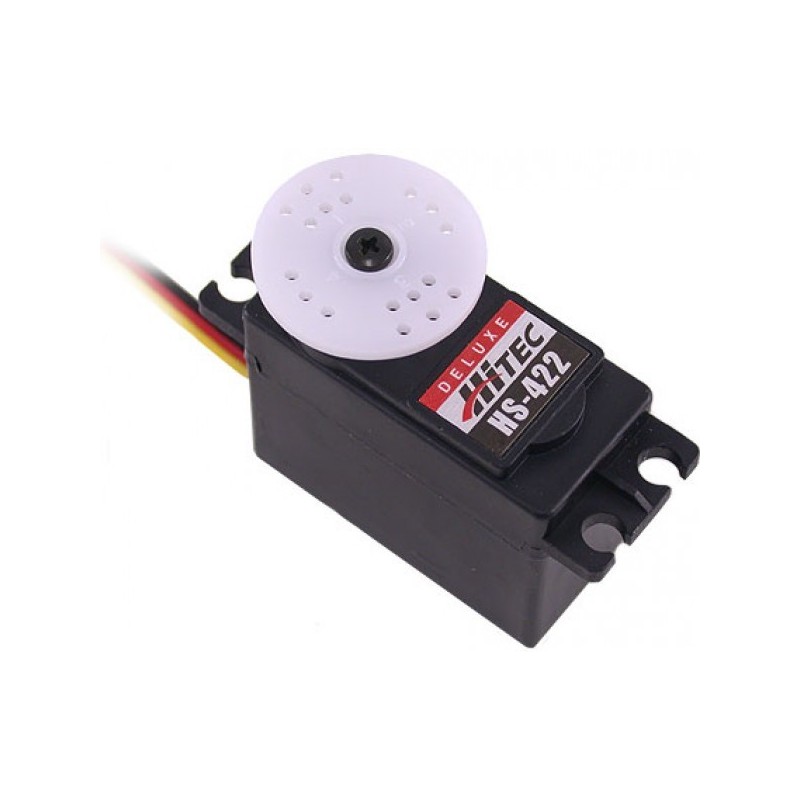

Hitec HS422 Servo
  • Hitec HS422 Servo
  • Hitec HS422 Servo
  • Hitec HS422 Servo

Hitec HS422 Servo

:MOT03017
€12.15

Stall Torque  4.1kg.cm, Operating Angle: 45 Deg. one side pulse traveling 400usec, 360 Modifiable

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

This is the classic Hitec HS-422 servo. This solid consumer grade servo is able to take in 6 volts and deliver 57 oz-in. of maximum torque at 0.16 sec/60°, this is a simple servo for any beginner project!

This high quality servo is perfect for your mechatronic needs and if you are looking to get into robotics, this is where to start. The HS-422 servo comes standard with a 3-pin power and control cable and all hardware listed below.

Features:

  • Voltage: 4.8-6.0 Volts
  • Torque: 45.82/56.93 oz-in. (4.8/6.0V)
  • Speed: 0.21/0.16 sec/60° (4.8/6.0V)
  • Direction: Clockwise/ Pulse Traveling 1500-1900usec
  • Rotation: 180°
  • Dual Oilite Bushing
  • Nylon Gears
  • 3-Pole Ferrite Motor
  • C1 Standard Spline

Includes:

  • 1x HS-422 Servo
  • 1x Circle Horn
  • 1x Double Arm Horn
  • 1x Single Arm (w/ Slide Bracket) Horn
  • 1x Four Point Horn
  • 4x Rubber Grommets
  • 4x 2x15mm Phillips Screw
  • 4x Brass Eyelets

Dimensions:

  • 40.6 x 19.8 x 36.6mm
  • Wire Length: 300mm
  • Weight: 45.5g

Documents:

Datasheet

MOT03017
