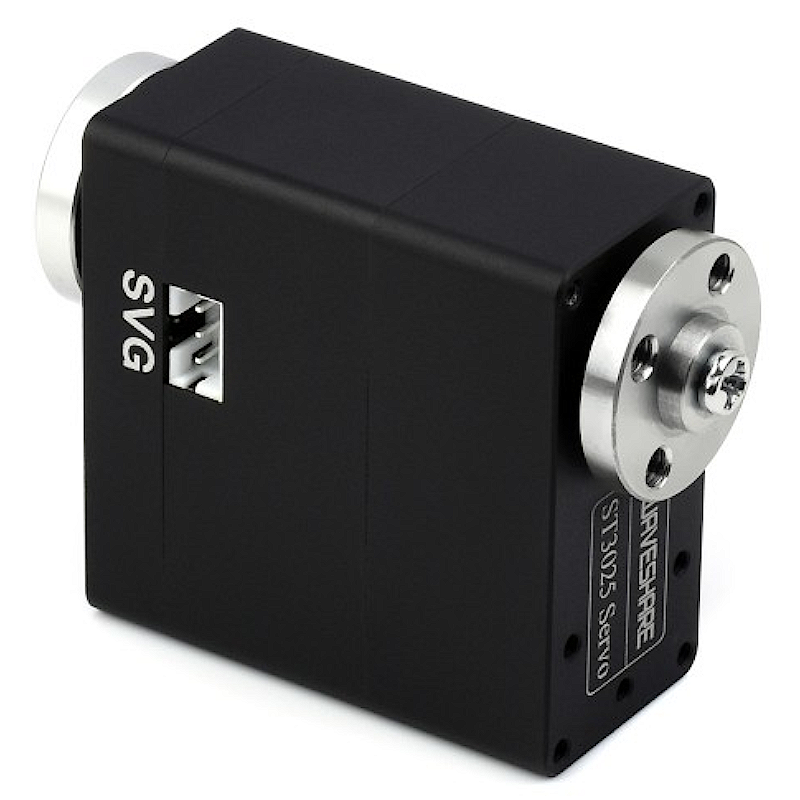

Servo ST3025 Metal Serial UART Bus 40kg.cm@12V Brushless High Precision w/ Programmable 360 Degrees Magnetic Encoder

:MOT03051
€73.09

The ST3025 servo with a programmable magnetic encoder is a versatile module with unique capabilities. It provides precise 360° motion control, a wide voltage range from 6 V to 12.6 V and high torque of 40 kg*cm / 12 V , making it perfect for advanced robotics projects.

If you want to know more about this product, please check its Wiki Page.

Note: Servo Drive is not included.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.






Specifications

Product type

ST3025 serial bus servo

Torque

40kg.cm@12V

Rotation angle

360° (0~4095)

Position sensor resolution

0.088° (360°/4096)

Mechanism limit angle

No Limit

Working voltage

6 ~ 12.6 V (typ. 12V)

Gear

high precision steel gear

No-load speed

0.117sec/60° (85RPM)

Encoder type

12Bits magnetic encoder

ID range

1 ~ 253

Baudrate

38400bps ~ 1Mbps (1Mbps by default)

No-load current

380mA

Locked-rotor current

4.4A

Kt

9kg.cm/A

Feedback

Position, Load, Speed, Input Voltage, Current, Temperature



UART Serial Bus Control

Allows controlling up to 253 serial bus servos at the same time


Note: though one channel UART can control up to 253 serial bus servos, due to the high power of the servos, it is necessary to consider whether the power supply solution is enough when using too many servos. For reference only, the servo driver board is NOT included



Easy to use, Large Torque

Supports 6.0~12.6V Wide range Voltage Input, And Can Be Directly Powered By 3S lithium batteries. Up To 40kg.Cm Torque On 12V Voltage, Suitable For Building Quadruped Robots, Hexapod Walkers, Robotic Arms And Other Robotic Projects Requiring Multiple Servos






All-aluminum alloy case + brushless motor + steel gear box

Adopts high-reliability Design, suitable for industrial equipments, robotics, and other application scenarios that require angle or speed closed-loop control






360° Magnetic Encoder - High Precision, Longer Lifetime

Adopts 12-bit high-precision magnetic encoding angle sensor. Compared with the carbon film potentiometer, the angle of the magnetic encoder is enlarged to 360°, and the resolution is increased by 4 times. Since there is a gap and no friction between the magnetic encoder and the radial magnet, the lifetime of the servo is effectively extended.






Acceleration Start-stop Function

The speed and acceleration values are settable to make the motion effect softer






One Button to Calibrate the Middle Position

360° installation at any position, one button to set the current position as middle position. Easy to install and debug


1. In the default program, a hotspot will be created automatically after the servo driver board is turned on. Use your mobile phone to connect to this hotspot, open the browser, and enter the IP address to enter the control interface



.


2. Click Release to unlock, then turn the servo to the middle position where you need to set






3. Click Set Middle Position then confirm.






4. Turn the servo to any angle, then click Middle, and the servo will automatically return to the middle position initially set.





Two-Way Feedback

The Servo Will Provide Various Feedback Like Position, Load, Speed, Input Voltage, Current and Temperature In Real Time


* images here are for reference ONLY





Multiple operation modes suitable for more application scenarios


Angle servo mode
Default mode, the angle position is controllable at 0~360° degrees






Speed closed-loop motor mode
Motor mode, intelligently control and maintain speed when the load changes






Step mode
Can perform step motion relative to the current position





Multi-Loop angle Position control

Supports angle position control in both positive and negative directions up to 7 loops under the default precision setting, but the number of loops will not be saved in case of power loss. Lowering the angle resolution can double the number of control loops






Supports installing flat-shaft flange

With the flat-shaft flange designed for this serial bus servo, the output shaft of the servo can be installed on more devices, making full use of various working modes and excellent low-speed performance. It can be used to install various transmission parts such as 6mm shaft couplings, wheels, timing pulleys, and gears.


* images here are for reference ONLY



All-metal servo bracket

More Convenient to Develop the Structural Components, Combination Use More Flexible




Details Introduction


Aluminium Alloy Case
Improved heat tolerance, size stability, rigidity, and mechanical performance






High strength aluminum servo wheels
Using T6061 aluminum alloy, good anti-corrosion performance






High precision steel gears
Lower working noise, better stability and mechanical performance






All-metal bracket
More convenient to combine it with other devices





Open Source Control Program

We provide the open-source web control demo of the servo driver board and a secondary development tutorial, which can be directly used for remote setting and remote control of the servo. At the same time, we also provide a 3D model for you to build your project quickly.






Outline dimensions




Resources & Services




WIKI: www.waveshare.com/wiki/ST3025_Servo



Package Content

Weight: 0.124 kg

ST3025 Servo x1

MOT03051
