GP2Y1010AU0F Compact Optical Dust Sensor
  • GP2Y1010AU0F Compact Optical Dust Sensor
  • GP2Y1010AU0F Compact Optical Dust Sensor
  • GP2Y1010AU0F Compact Optical Dust Sensor
  • GP2Y1010AU0F Compact Optical Dust Sensor
  • GP2Y1010AU0F Compact Optical Dust Sensor

GP2Y1010AU0F Compact Optical Dust Sensor

:SEN11001
€16.22

The Sharp Optical Dust Sensor (GP2Y1010AU0F) is especially effective in detecting very fine particles like cigarette smoke, and is commonly used in air purifier systems.

Quantity
Last items in stock

Overview

  • Sharp GP2Y1010AU0F onboard, detecting fine particle larger than 0.8μm in diameter, even like the cigarette smoke
  • Low power consumption, analog voltage output, the output level is linear with dust density
  • Embedded voltage boost circuit to support wide range of power supply

Specifications

  • Sensitivity : 0.5V/(100μg/m3)
  • Measurement range : 500μg/m3
  • Power : 2.5V~5.5V
  • Operating current : 20mA(max)
  • Operating temperature : -10℃~65℃
  • Storage temperature : -20℃~80℃
  • Life time : 5 years
  • Dimension : 63.2mm×41.3mm×21.1mm
  • Mounting holes size : 2.0mm
  • Air hole size : 9.0mm

Applications

  • Air purifier
  • Air conditioner
  • Air monitor
  • PM2.5 Detector

How to Use

In the case of working with a MCU:

  • VCC ↔ 2.5V ~ 5.0V
  • GND ↔ GND
  • AOUT ↔ MCU.IO (analog output)
  • ILED ↔ MCU.IO (module driving pin)

Photos

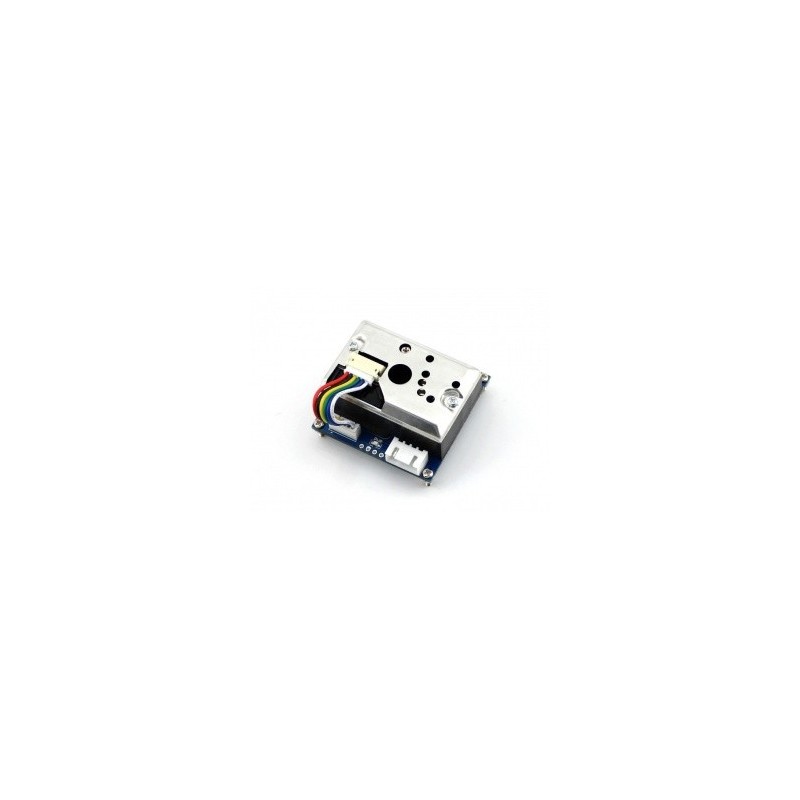

As shown in the first picture above, you can add the bottom pinheaders (not soldered by default) for easily connecting the module to your application board.

Development Resources

Wiki : www.waveshare.com/wiki/Dust_Sensor

SEN11001
