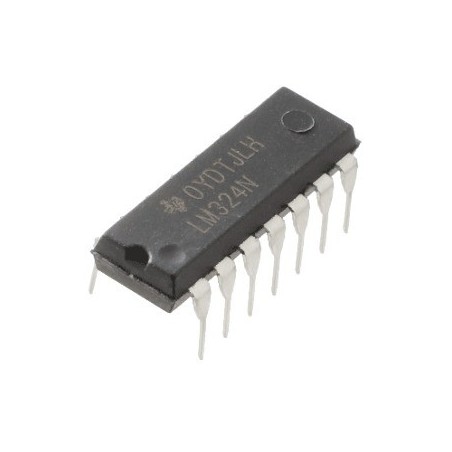

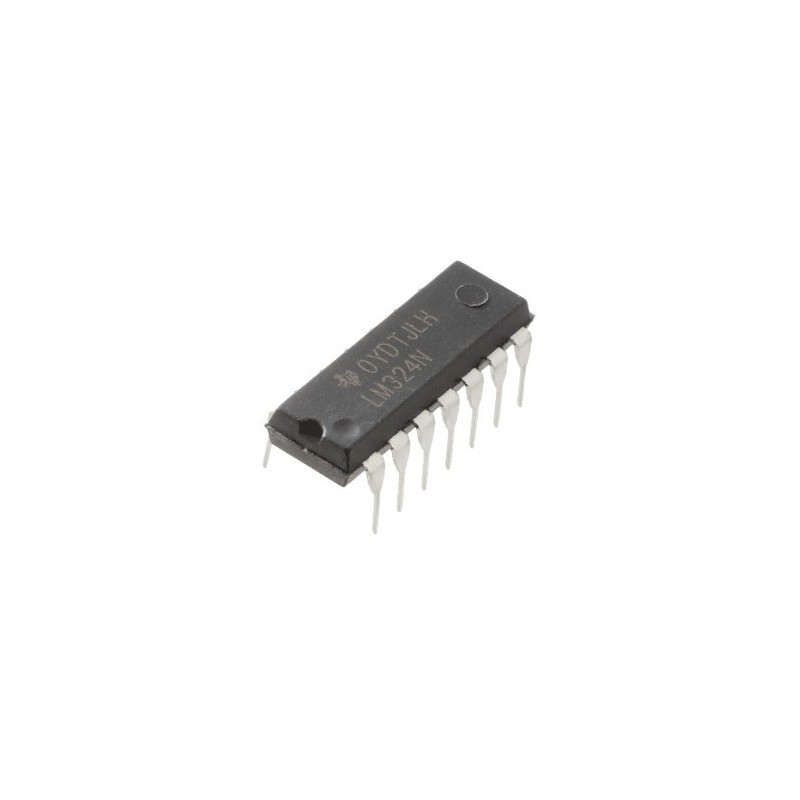

LM324 - Quad Operational Amplifier
  • LM324 - Quad Operational Amplifier

LM324 - Quad Operational Amplifier

:CEL08037
€0.33
Tax included
Quantity

If you have any questions on this product please feel free to contact us. *Disclaimer: The images are merely illustrative.



TEXAS INSTRUMENTS
amplificador operacional
THT
DIP14



Features

• Internally Frequency Compensated for Unity Gain

• Large DC Voltage Gain: 100dB

• Wide Power Supply Range: LM324/LM324A : 3V~32V (or ±1.5 ~ 16V) LM2902/LM2902A: 3V~26V (or ±1.5V ~ 13V)

• Input Common Mode Voltage Range Includes Ground

• Large Output Voltage Swing: 0V to VCC -1.5V

• Power Drain Suitable for Battery Operation


Internal Block Diagram

CEL08037

Download

Datasheet LM324

Download (172.73k)
