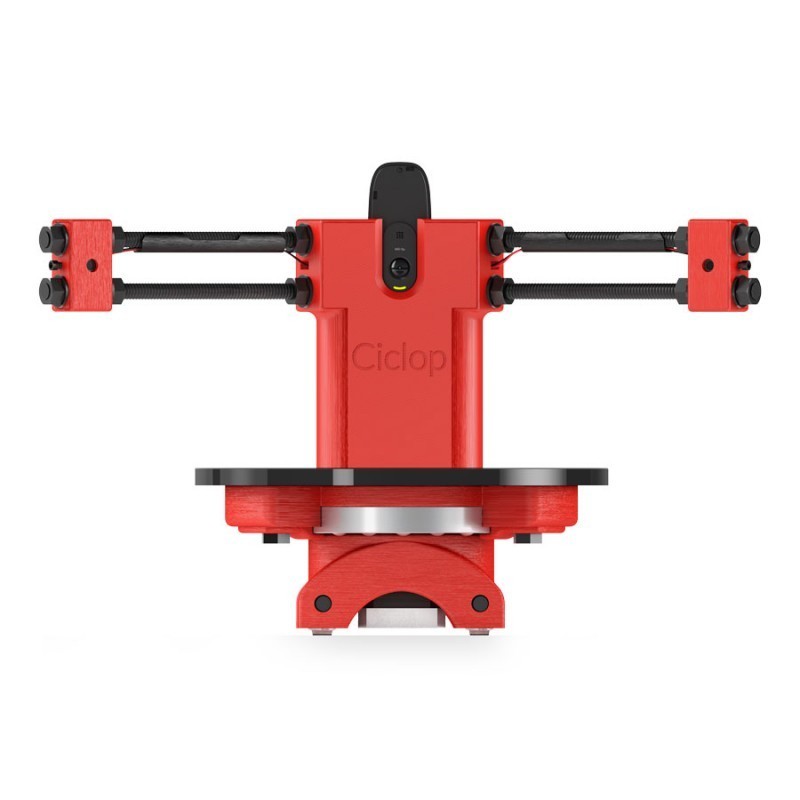

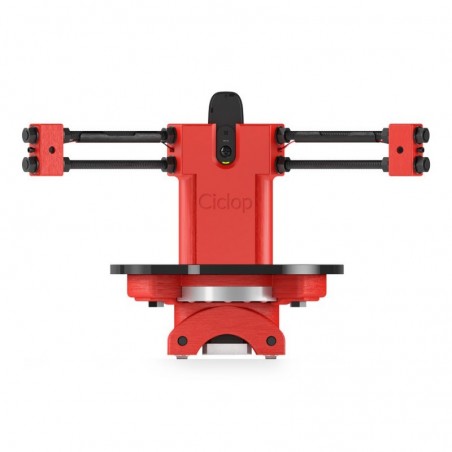

Kit CICLOP DIY 3D Scanner Red

:IMP04000
€203.17
Tax included

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



Properties

Scan properties

  • Scanning accuracy: 0,5 mm
  • Scanning accuracy (configurable): 2-8 min
  • Steps per revolution: 1600 máx.
  • Scan Volume: (Ø) 250 x (H) 205 mm
  • Maximum weight: 3 Kg.



Measures and weight

  • Product Weight (Kg) - 2.5200
  • Dimensions - 450x330x230 mm



DIY

  • Software and Connectivity Horus software 100% livre
  • Free firmware control by gcodes
  • Output files: ply
  • Complete solution platform: Linux, Windows, Mac.
  • Controller Board: USB e Bluetooth
  • Camera: USB.



Box contents

  • Camera Logitech C270 HD
  • Two linear lasers Class 1
  • Power supply 12 V 1.5 A
  • Micro-USB cable
  • Controller Board: ZUM BT-328
  • Power Board: ZUM SCAN Shield
  • Bipolar stepper motor Nema (1.7 A 1.8 pass./rev.)
  • Axial ball bearings 16014
  • Methacrylate Base Ø200 x 8 mm
  • Non-slip surface Ø200 mm
  • Threaded rods
  • PLA Printed parts
  • Rectangular Standard methacrylate
  • Assembly Guide
  • Warranty
