Industrial Serial Server, RS485 to RJ45 Ethernet PoE + Electrical isolation, TCP/IP to Serial, DIN Rail- Waveshare 23273

Reference : COM03044

€31.50

Tax included

Description

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

The RS485 TO POE ETH (B) is the hardware upgrade version, supports PoE Ethernet port power supply, with power and signal isolation protection, which is safer for industrial applications. All three versions have the same software functionality.

Features at a glance

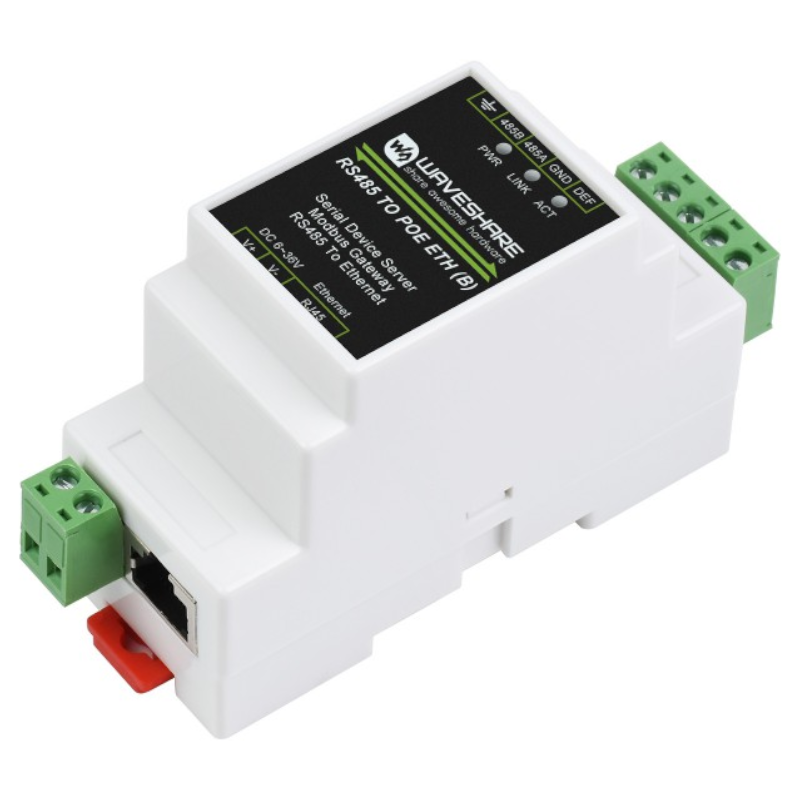

This is a RS485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS485 and Ethernet port (POE function is optional), uses screw terminals for power input. Rail-mount case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...

Specification	RS485 TO POE ETH (B)
Product Type	Serial server, Modbus Gateway, MQTT Gateway
Basic Function	Bi-directional transparent data transmission between RS485 and Ethernet
Communication Interface	RS485 port x 1, Ethernet port x 1
Power Supply	6 ~ 36V DC screw terminal, or PoE port
Isolation Protection	Power isolation, Signal isolation
COMMUNICATION
Ethernet	PoE network port, supports IEEE 802.3af standard; 10/100M auto-negotiation RJ45 connector, 2KV surge protection
Serial Port	Isolated RS485
SERIAL SPECIFICATION
Baudrate	300 ~ 115200 bps
Parity Bit	none, odd, even, mark, space
Data Bit	5 ~ 9 bits
Flow Control	N/A
SOFTWARE
Protocol	Ethernet, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration	Host, web browser, device management functions library
Communication Method	TCP/IP direct communication, VCOM
Operating Mode	TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast
ENVIRONMENT REQUIREMENT
Operating Temperature	-40°C ~ 85°C
Humidity Range	5% ~ 95% relative humidity
Dimensions	L × W × H: 87 × 36 × 59 mm

Primary function

Bi-directional transparent data transmission between RS485 and Ethernet

Rail-mount support

Easy to combine multi rail-mounted serial server together, more freely

Modbus gateway support

Suitable for Modbus gridding upgrade, can be used with 3D configuration software

Multi communication modes

Supports TCP server / TCP client / UDP mode / UDP multicast

MQTT/JSON to Modbus

More flexible conversion between different protocols

When used as MQTT gateway, the devices can upload serial data to MQTT server by MQTT protocol through transparent transmission, supported servers including Baidu Cloud MQTT, Alibaba Cloud MQTT, China Mobile OneNet, etc. The acquired Modbus RTU or non-standard serial data can be parsed into JSON format and packaged into MQTTdata packet for uploading.

When used as JSON data acquisition gateway, the devices can be connected to data acquisition instruments through RS485 connection, then acquire data automatically, convert the data into JSON format, and finally post it to server. The acquired data supports Modbus RTU 645 instrument 97 version, 645 instrument 07 version, as well as sorts of non-standard RS485 protocols. The uploaded data format can be configured via host, and the JSON upload protocol can be MQTT protocol, HTTP POST protocol, HTTP GET protocol, and so on.
