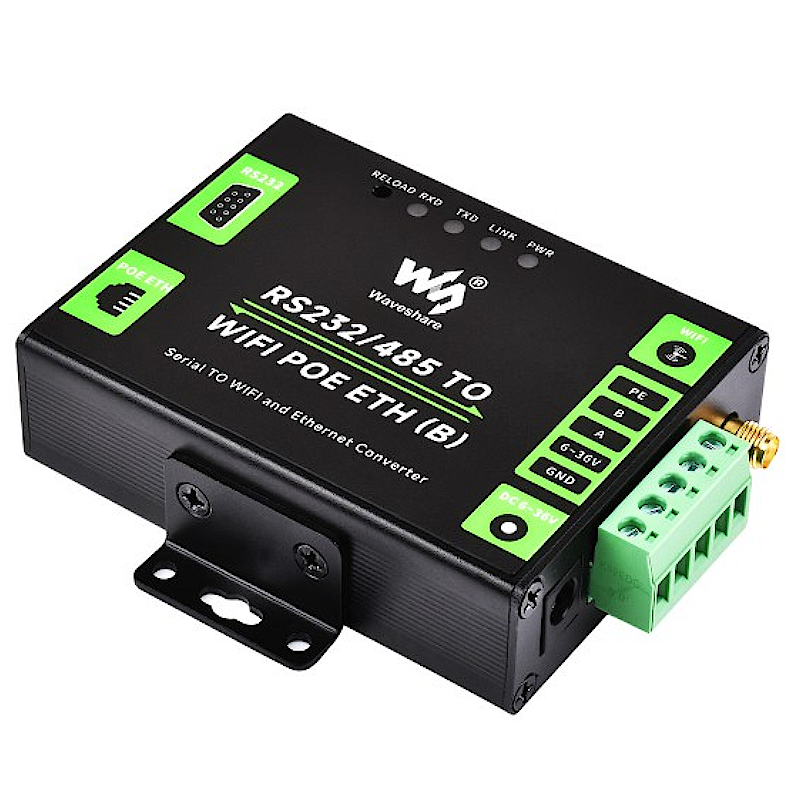

Serial Server Converter RS232/485 To WiFi and Ethernet, Modbus/MQTT Gateway, with POE - Waveshare 25223

: COM03042
€39.90
Tax included

This is an RS232/485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, serial port to HTTPD Client, etc. With RS232, RS485, WIFI and Ethernet interfaces, the module can realize functions such as serial port to WIFI, serial port to Ethernet, Ethernet to WIFI and so on. Onboard multiple power supply interfaces, supports 6~36V wide range power supply, and PoE function optional.

If you want to know more about this product, please check its Wiki Page.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Note: The power supply is NOT included, it is recommended to use this 12V Power Adapter.



Features at a glance

This is an RS232/485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, serial port to HTTPD Client, etc. With RS232, RS485, WIFI and Ethernet interfaces, the module can realize functions such as serial port to WIFI, serial port to Ethernet, Ethernet to WIFI and so on. Onboard multiple power supply interfaces, supports 6~36V wide range power supply, and PoE function optional. Industrial grade metal case design, supports wall-mount and rail-mount installations, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...



Specifications

Power supply

DC 6~36V/ PoE Port

Power supply method

DC 5.5 power port, screw terminal, or PoE Port

Dimensions



(L x W x H)

84.00 x 64.00 x 24.00mm

Communication



Ethernet

10 / 100M auto-negotiation RJ45 connector

WIFI

802.11b/g/n compliant

Serial port

RS232 (ESD/EFT)



RS485 (ESD/EFT/surge protection)

Wireless Specifications



Frequency Band

2.412 ~ 2.484 GHz

Wireless network

Station / AP / AP+Station Mode

Security mechanism

WPA-PSK / WPA2-PSK

Encryption type

TKIP / AES

Transmitting power

802.11b: +19dBm (Max.@11Mbps)



802.11g: +18dBm (Max.@54Mbps)



802.11n: +17dBm (Max.@HT20, MCS7); +17dBm (Max.@HT40, MCS7)

Receiving sensitivity

802.11b: -89dBm (@11Mbps)



802.11g: -81dBm (@54Mbps)



802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)

Serial Specifications



Baudrate

300 ~ 460800 bps

Parity bit

None, odd, even, mark, space

Data bit

5 ~ 9 bits

Flow control

RTS/CTS

Software



Protocol

TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT

Configuration

Host, web browser, serial AT command

Communication method

TCP/IP direct communication, VCOM

Operating mode

Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU

Environment Requirements



Operating temperature

-40℃ ~ 85℃

Humidity range

5% ~ 95% relative humidity



Resources

  1. Product Wiki

  2. User Manual



Pinout





Package Contents

  1. 1x RS232/485 TO WIFI POE ETH (B)

  2. 1x 2.4G WiFi antenna

  3. 1x Rail-mount buckle

  4. 1x Screwdriver

  5. 1x Screws pack
