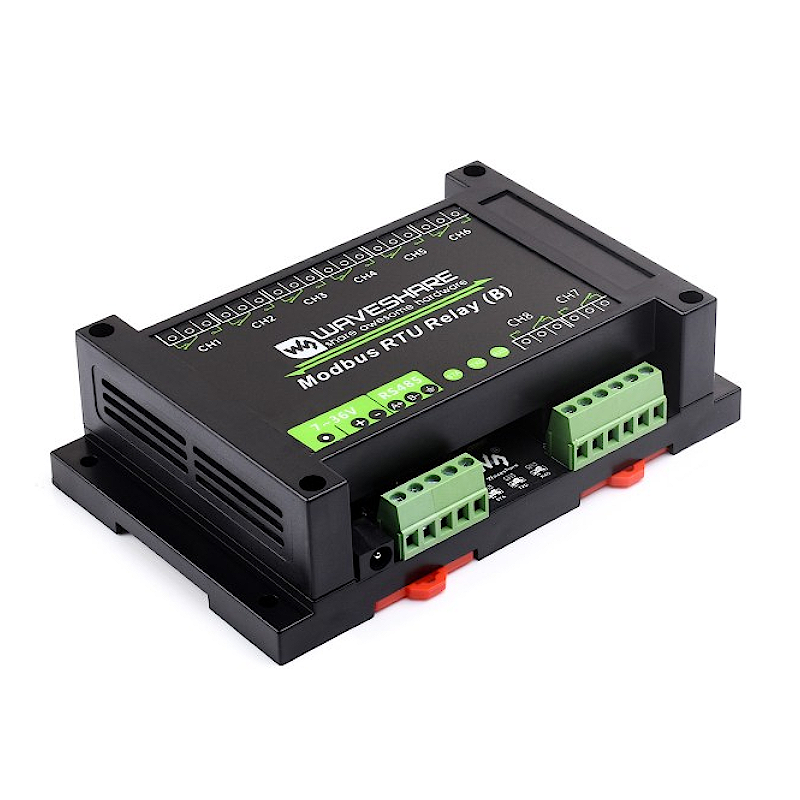

Industrial Modbus RTU 8-ch Relay Module (B) with RS485 Interface, Multi Isolation Protection Circuits, 7~36V Power Supply
This is an industrial 8-ch relay module controlled via RS485 bus, utilizing Modbus RTU protocol. It features embedded protection circuits such as power isolation, ADI magnetical isolation, and TVS diode, etc. It also comes with an ABS enclosure.
If you want to know more about this product, please check the Wiki Page.
Note: This is the 7~36V version, if you want the 5V version, just click Here.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Features At A Glance
This is an industrial 8-ch relay module controlled via RS485 bus, utilizing Modbus RTU protocol. It features embedded protection circuits such as power isolation, magnetical isolation, and TVS diode, etc. It also comes with an ABS enclosure. The Modbus RTU Relay (B) is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.
-
Configurable device address (1~255), multi devices can be cascaded on RS485 bus
-
Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically
-
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
-
Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
-
Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
-
Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
-
Adopts dedicated relay driver chip, with built-in flyback diode protection, for stronger and more stable driving ability
-
Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
-
High quality relay, contact rating: ≤10A 250VAC/30VDC
-
Rail-mounted ABS plastic enclosure, easy to install, safe to use
-
3 LEDs for indicating the MCU status and signal transceiving status
Specifications
PRODUCT | Modbus RTU Relay | Modbus RTU Relay (B) |
---|---|---|
Power supply | 5V | 7~36V |
Communication interface | RS485 | |
Baudrate | 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000 | |
Default communication format | 9600, N, 8, 1 | |
Relay channels | 8 | |
Contact form | 1NO 1NC | |
contact rating | ≤10A 250VAC/30VDC | |
Communication protocol | Standard Modbus RTU protocol | |
RS485 address | 1~255 | |
LED indicators | STA: MCU indicator, keeps flashing when the MCU normally working TXD: TX indicator, lights up when sending data RXD: RX indicator, lights up when receiving data |
Hardware Analysis
Multiple protections for safer and more reliable use
Enclosure Design
Rail-mounted ABS plastic enclosure, easy to install, safe to use
RS485 Communication
Configurable device address (1~255), multi devices can be cascaded on RS485 bus
In case of many devices are cascaded, or communication distance is quite long, it is necessary to use RS485 repeaters
for reference only, the USB TO RS232/485/TTL converter is Not included
Relay connection
Contact rating of the onboard relay up to 10A 250VAC/30VDC
Directly controlling 220VAC home appliances, or devices below 30VDC
Applications
Product show
Outline dimensions
Resources & Services
WIKI: www.waveshare.com/wiki/Modbus_RTU_Relay
Package Content
Weight: 0.244 kg
- The power supply of this product is not included, it is recommended to purchase 12V power supply if you need it.
- It is also recommended to purchase USB TO RS232/485/TTL or USB TO RS485 at the same time for easy testing.
Modbus RTU Relay (B) x1
