Rboard

: MRE01025
€19.11

DISCONTINUED

Arduino board which features 4 channels isolated relays.

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

  • Overview

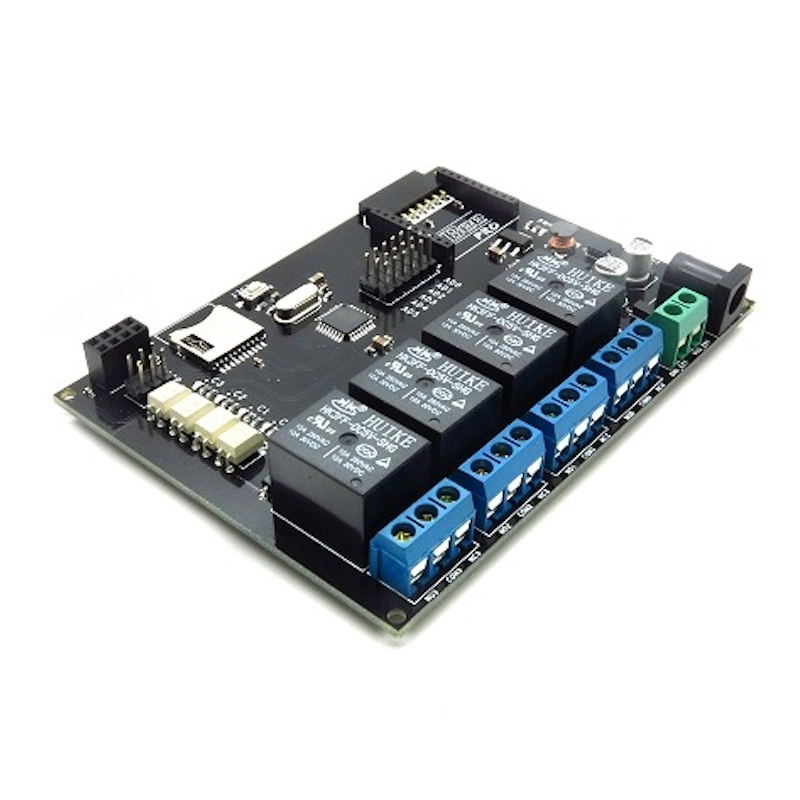

    Rboard is a unique Arduino board which features 4 channels isolated relays, an XBee socket, and an ATMega328. This board will add relay control as well as wireless connectivity to your projects. It’s great for anything from home automation to robot control. The possibilities are endless!

    Features

    • 4 optocoupler isolated channels
    • 4 mechanical relays with status indicator LED
    • Both “NC” and “NO” ports for each relay
    • ATMega328P with XBee interface headers, Micro SD socket
    • With Arduino Duemilanove bootloader

    Documents

    Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials.





    Microcontroller

    ATMega328P

    Max Frequency

    16MHz

    RAM Capacity

    2K

    FLASH Capacity

    32K

    External Resources

    • Onboard SD socket

    • Electronic Brick Interface

    Power Supply

    • External 12V

    • External 24V

    • External 5V

    • External 7V

    • External 9V

    I/O Operation Level

    3.3V

    Board Size

    79mm X 106mm

    Model

    IM120618001

    Version

    1.0

    Weight

    80.00g

    Accessories

    No





    Schematic

    Datasheet

MRE01025
