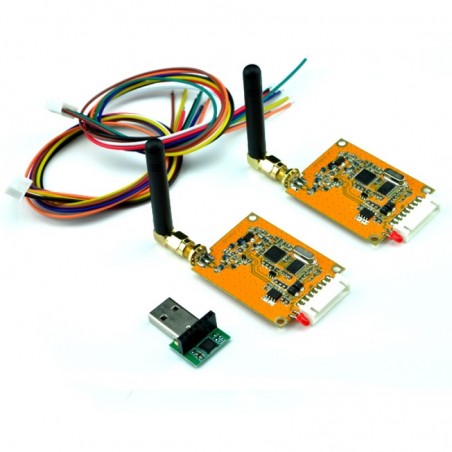

APC802 Wireless Communication Module Kit -3km
: COM05057
€97.48
APC802-43 module is a highly integrated half-duplex micro-power wireless data transmission module, include the high-speed microcontroller and ADI's high-performance RF chip ADF7020-1.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Description
APC802-43 module is a highly integrated half-duplex micro-power wireless data transmission module, include the high-speed microcontroller and ADI's high-performance RF chip ADF7020-1.
It support efficient circulation innovative interleaving error correction coding, anti-interference and sensitivity are greatly improved, 24bits continuous burst error can be corrected to achieve the advanced level in the industry.
APC802-43 module provides a choice of multiple channels can be modified online serial rate, transmit power, RF rate and other parameters, it can be transparent data of any size, the user no need to write complex settings transfer program, while the small size wide-voltage operation, far transmission distance, a rich and convenient software programming capabilities, so it can be applied with wide range field.
Features:
2800-3200 meters transmission distance (9600bps)
Operating frequency 418-455MHz
Communication channel to 0.2MHz step, continuously adjustable
Transmitting power: 500mW adjustable), supply voltage: 4.7 - 6.5V
Current consumption: 35mA (receiver), 400mA (transmitter)
UART interface
Is greater than 100 channels
GFSK modulation mode
Efficient cycle interleaved error correction coding, the maximum burst error correction 24bits continuous
Flexible set of software programming options
The oversized 2 × 256bytes data buffer
Suitable for a large amount of data transmission
Built-in watchdog to ensure long-term reliable operation
Volume: 60.0 × 43.0 × 14.0 (mm)
Applications:
Wireless Sensor
Home Automation
Wireless meter reading
Automated data acquisition
Remote control and monitoring
POS systems, asset management
Building residential automation and security
Robot control
Vehicle Management
Meteorology, remote sensing
2800-3200 meters transmission distance (9600bps)
Operating frequency 418-455MHz
Communication channel to 0.2MHz step, continuously adjustable
Transmitting power: 500mW adjustable), supply voltage: 4.7 - 6.5V
Current consumption: 35mA (receiver), 400mA (transmitter)
UART interface
Is greater than 100 channels
GFSK modulation mode
Efficient cycle interleaved error correction coding, the maximum burst error correction 24bits continuous
Flexible set of software programming options
The oversized 2 × 256bytes data buffer
Suitable for a large amount of data transmission
Built-in watchdog to ensure long-term reliable operation
Volume: 60.0 × 43.0 × 14.0 (mm)
Applications:
Wireless Sensor
Home Automation
Wireless meter reading
Automated data acquisition
Remote control and monitoring
POS systems, asset management
Building residential automation and security
Robot control
Vehicle Management
Meteorology, remote sensing
Package include:
1. 2 x APC802 Module
2 2 x straight head / elbow antenna
3. USB-TTL Dongle
2 2 x straight head / elbow antenna
3. USB-TTL Dongle
