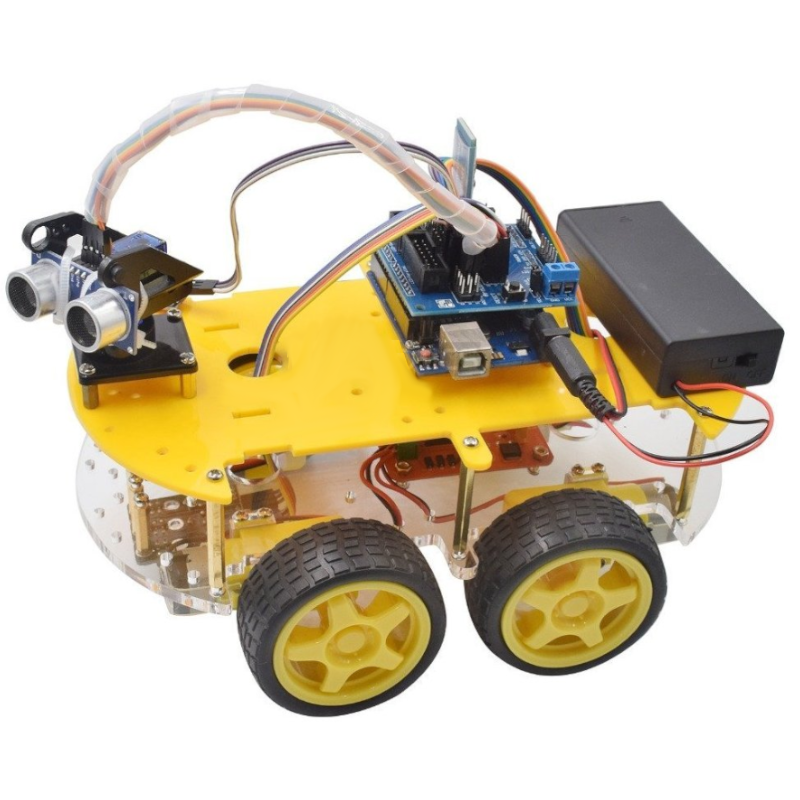

4WD Robot Car Kit DIY (18650 battery not included)

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description:

The multifunction bluetooth controlled robot car is an upgraded version of auto-walk car, which added the part of bluetooth control.

The bluetooth controlled robot car is a microcontroller leaning application development system, based on Arduino AtMega-328p. It has the function of hunt, obstacle avoidance and remote control. And also can expand external modules to increasing the car's function.

Features:

1. - Working voltage: 7V - 12V

2. - Decelerate motors ratio 1:48, drive voltage 6V

3. - Uses L298N driver module, real isolation to MCU

4.  -Three groups of hunt module(detects black and white lines), higher accuracy

5. - Infrared remote communication module, composed of smart car to be remote control system

6. - Bluetooth wireless communication module (short-range wireless remote control)

7. - With economic and environmentally friendly rechargeable battery (charger rand batteries must be aquired separately)

8. - Can be equipped with a variety of sensor modules, depending on your imagination to achieve a variety of functions

Pakcage included:

1. 4 x Geared motor

2. 4 x Tyre

3. 4 x Motor fixing

4. 2 x Acrylic glass plate (135x231x5mm)

5. 1 x L298N motor driver

6. 1 x Atmega UNO 328 controller board

7. 1 x Sensor board V5

8. 1 x Holder kit

9. 1 x Steering gear

10. 1 x Ultrasonic module

11. 3 x Line inductive module

12. 1 x Infrared receiver module

13. 1 x MCU remote control

14. 1 x 18650 battery holder

15. 1 x Bluetooth Module

16. 1 x USB cable (0.5m)

17. 30 x Dupont line

18. 15 x Pillars (6x 40mm; 3x 20mm; 6x 10mm)

19. All necessary screw and nut
