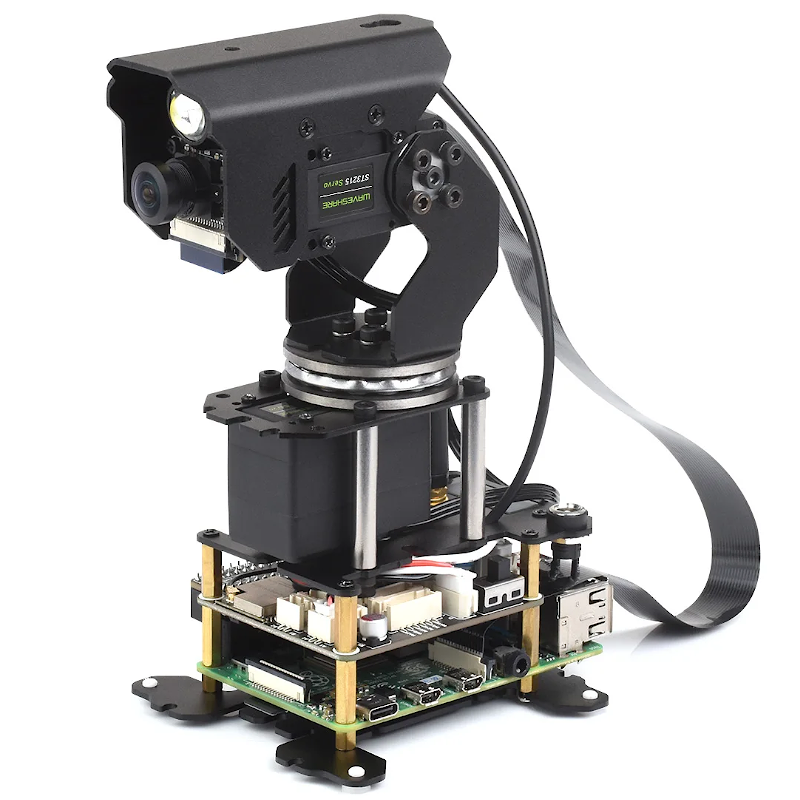

360° Omnidirectional High-Torque 2-Axis Expandable Pan-Tilt Camera Module, Driven By Serial Bus Servos - Waveshare 26519

:ROB04020
€101.22

The pan-tilt camera module adopts high-torque 2-DOF servos, achieving a wide range of rotation in both the horizontal PAN axis (±180°, total range of 360°) and the vertical TILT axis (-45° to 90°, total range of 135°), significantly broadening the coverage area of the camera.

If you want to know more about this product, just check his Wiki Page.

NoteRaspberry Pi not included.

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.






* for reference only, the Raspberry Pi 4B is NOT included.





Specifications

DOF

2

Drive method

TTL Serial bus servo

SERVO ROTATION SPEED

40rpm

JOINT ANGLE SENSOR

12-bit 360° magnetic encoder

SERVO TORQUE

30kg.cm at12V

JOINT FEEDBACK INFORMATION

servo status, joint angle, rotation speed, joint load, servo voltage, servo current, servo temperature and servo working mode

MAIN CONTROL

ESP32-D0WD-V3

WIRED CONTROL MODE

USB, UART

HOST SUPPORT

Raspberry Pi 4B, Raspberry Pi 5

LED power

<1.5W

WEIGHT

441g

DEMO

Real-time video transmission, resolution configuration, zoom, face detection (OpenCV), motion detection (OpenCV), photo taking, video recording, video review, detection condition setting, detection action setting, LED control, pan-tilt control, and serial bus servo setting



Easy To Control Via Cross-Platform Web Application

Allows connecting and controlling the pan-tilt module via mobile phones, tablets and computers by clicking the buttons on the Web App. Supports secondary development of this open-source Web App to customize the user interface and add new functions.





Flexible 360° omnidirectional rotation

The Horizontal Rotation Range Up To 360°, The Vertical Rotation Range Up To 135°





Supports Raspberry Pi 4B / 5

Highly compatible with Raspberry Pi, can be easily integrated into your project.


* for reference only, the Raspberry Pi is NOT included.



Open-Source All Demos for a variety of practical functions



Face Detection






Motion Detection






Pan-tilt Control






Video Review





160° ultra wide-angle camera

Comes with 0V5647 5MP 160 ultra wide-angle camera
Capture wider area to meet various visual requirements





LED Fill Light

Ensures clear images in low-light conditions





Small size × high-torque

30kg.cm ultimate joint torque to meet various working requirements


* for reference only, please refer to the Package Content for detailed part list




Joint Direct-Drive Design with High-precision serial bus servos

Adopts joint direct-drive design with high-precision serial bus servos, built in 360° 12-bit magnetic encoder, supports obtaining feedback information such as joint angle and Joint load to realize closed-loop control





Supports Flexible Expansion And Secondary Development

Comes with a free Picatinny rail and 1/4 screw, open source for models and drawings.
More convenient for users to integrate this pan-tilt camera module into other projects


* for reference only, please refer to the Package Content for detailed part list



Outline dimensions




Resources & Services


* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.





Package Content

Weight: 0.888 kg

  1. Bearing retainer x1

  2. Servo mounting plate (2PCS) x1

  3. Pan-Tilt metal kit (3PCS) x1

  4. Chassis mounting plate (2PCS) x1

  5. LED fill light with PH2.0 male plug x1

  6. RPi Camera (G) (with cable) x1

  7. ST3215 Servo (with cable and screws) x2

  8. 3PIN servo connection cable ~300mm x2

  9. FFC 15PIN cable ~600mm x1

  10. Thrust ball plain bearing x1

  11. 2.4G antenna x1

  12. DC5521 to XH2.54 male cable ~15cm x1

  13. PH2.0 dual-plug 4PIN cable ~20cm x1

  14. IPEX 1 to SMA adapter cable ~17cm x1

  15. 0.91inch OLED x1

  16. General Driver for Robots x1

  17. 5.3cm clear suction pad x5

  18. 12V 5A Power supply x1

  19. Screwdriver x1

  20. Jetson Nano Adapter (A) x1

  21. 2*5PIN cable ~9cm x1

  22. USB Type-A male to Type-C male cable ~1m x1

  23. Mini cross wrench sleeve x1

  24. Picatinny rail (with spanner) x1

  25. Spanner x1

  26. FFC 15PIN black cable ~400mm x1

  27. Pi5-Camera-Cable-500mm x1

  28. Silicone nonskid feet x8

  29. Screws pack x1
