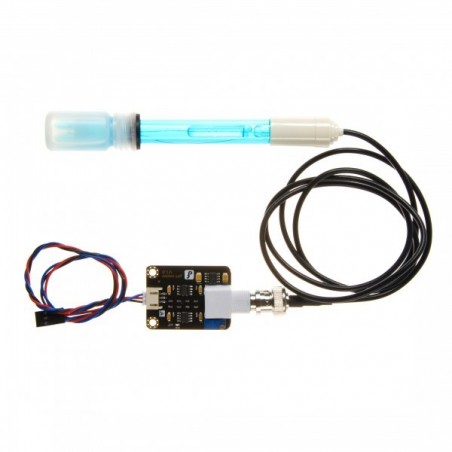

Analog pH Meter Kit
: SEN10026
€26.42
Analog pH Meter Kit, 0-14PH range, ± precisão 0.1pH
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Introduction
Need to measure water quality and other parameters but haven't got any low cost pH meter? Find it difficult to use with Arduino? Here comes an analog pH meter, specially designed for Arduino controllers and has built-in simple, convenient and practical connection and features. It has an LED which works as the Power Indicator, a BNC connector and PH2.0 sensor interface. To use it, just connect the pH sensor with BND connector, and plug the PH2.0 interface into the analog input port of any Arduino controller. If pre-programmed, you will get the pH value easily. Comes in compact plastic box with foams for better mobile storage.
Applications
- Water quality testing
- Aquaculture
Specification
- Module Power : 5.00V
- Module Size : 43mmx32mm
- Measuring Range :0-14PH
- Measuring Temperature :0-60 ℃
- Accuracy : ± 0.1pH (25 ℃)
- Response Time : ≤ 1min
- pH Sensor with BNC Connector
- pH2.0 Interface ( 3 foot patch )
- Gain Adjustment Potentiometer
- Power Indicator LED
Shipping List
- pH sensor (BNC connector ) ×1
- pH sensor circuit board ×1
- Analog cable ×1
