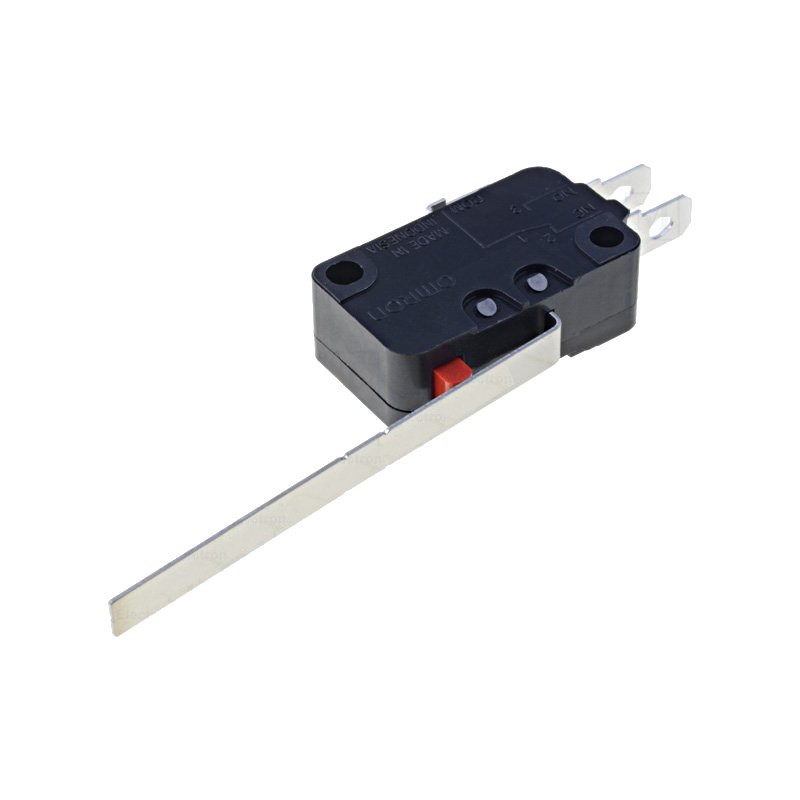

Microswitch OMRON D3V - w / lever 50.9mm
  • Microswitch OMRON D3V - w / lever 50.9mm

Microswitch OMRON D3V - w / lever 50.9mm

:CEL10054
€1.95
Tax included
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Manufacturer OMRON
Switch type microswitch
Switches features with lever
Contacts configuration  SPDT
AC contacts rating
(at resistance load)		 16 A / 250 VAC
DC contacts rating
(at resistance load)		 10 A / 30 VDC
Switching method ON-(ON)
Stable positions number 1-position
Sealing IP40
Leads for soldering, 4.75x0.5mm connectors
Body dimensions 27.8 x 10.3 x 15.9mm
Mechanical durability 10000000cycles
Operating temperature -25...105°C
Switching torque 0.98N
Lever length 50.9mm
Electrical life 100000cycles
Max. contact resistance: 30mΩ
Contact plating silver plated
Min. insulation resistance 100MΩ
CEL10054
