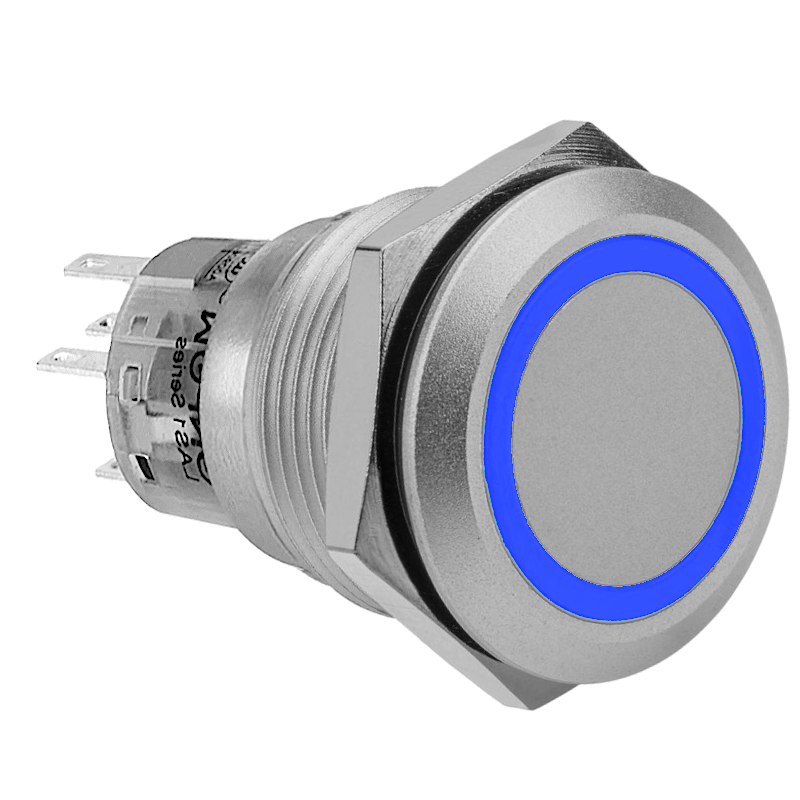

Metal illuminated switch-Blue (12V) Ring
: CEL10009
€10.33
water proof switch with illuminator (BLUE LED), stainless steel. ON-OFF switch (2 positions)
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Introduction
This is a water proof switch with illuminator (LED). It is made by stainless steel with excellent quality.
It comes at blue illuminated ring.
Manufacturer
|
ONPOW |
Type of switch
|
vandal resistant |
Number of positions
|
2 |
Contacts configuration
|
SPDT |
AC contacts rating @R(at resistive load)
|
0.5A / 220V AC |
DC contacts rating @R(at resistive load)
|
1A / 12V DC |
IP rating
|
IP67 |
Switching method(the position in bracket indicates momentary position.)
|
ON-ON |
Illumination
|
ring |
Backlight colour
|
blue |
Illumination voltage
|
12V |
Leads
|
for soldering |
Operating temperature
|
-20...55°C |
Electrical life
|
50000 cycles |
Max. contact resistance:
|
50mΩ |
Operating Force
|
5N |
Mechanical durability
|
1000000 cycles |
Button shape
|
flat |
Mounting hole diameter
|
Ø19mm |
Body colour
|
silver |
Body material
|
stainless steel |
Ring shape
|
rounded |
Test voltage
|
2kV |
Contact material
|
silver alloy |
Stable positions number
|
2 |
