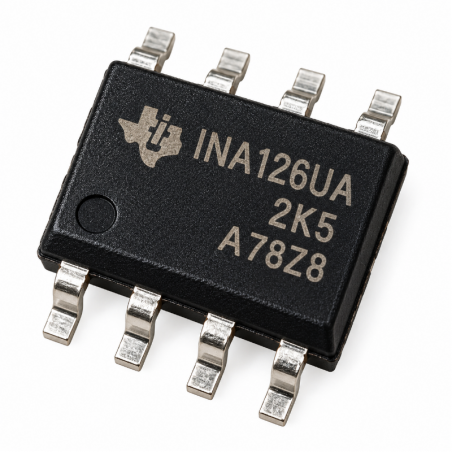

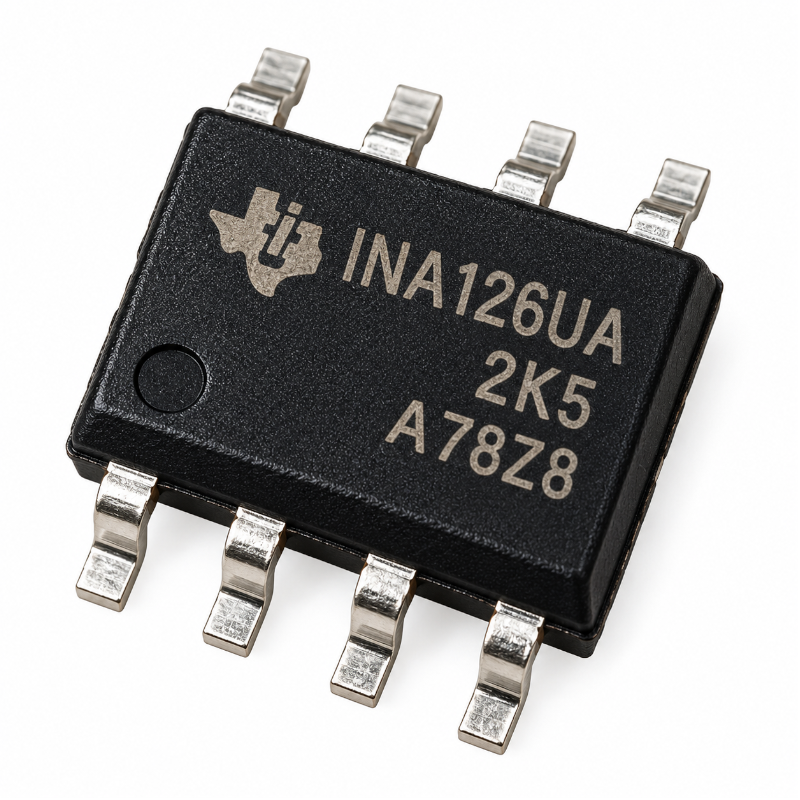

INA126UA/2K5 - Precision Instrumentation Amplifier SOIC-8

: CEL08063
€3.40
Tax included

Texas Instruments INA126UA precision instrumentation amplifier featuring adjustable gain, low power consumption and 200 kHz bandwidth. Housed in an SOIC-8 SMD package, it is suitable for electronic instrumentation, data acquisition and sensor signal amplification.

Quantity
Out-of-Stock


If you have any questions about this product, please feel free to contact us.

*Disclaimer: Images are for illustrative purposes only.



The INA126UA is a low-power instrumentation amplifier designed to accurately amplify small differential signals with low noise. It is suitable for measurement systems, data acquisition and electronic instrumentation.



Technical Specifications

FeatureSpecification
Manufacturer Texas Instruments
Part Number INA126UA/2K5
Type Instrumentation amplifier
Number of channels 1
Bandwidth 200 kHz
Supply voltage 2.7 to 36 V DC or ±1.35 to ±18 V
Voltage gain 5 to 10,000 V/V
Input offset voltage 150 µV (typical, according to TME)
Supply current 175 µA (typical)
Slew rate 0.4 V/µs
Output current 10 mA (according to DigiKey)
Operating temperature −40 to +85 °C
Package SOIC-8
Mounting type SMD
Factory packaging Reel of 2,500 units
Gross weight 0.1 g



Key Features

  • Adjustable gain: Configurable using an external resistor.
  • Low power consumption: Typical supply current of 175 µA.
  • High precision: Low input offset voltage and low temperature drift.
  • Low noise: Suitable for amplifying small-amplitude signals.
  • Flexible power supply: Supports single or dual supply operation within the specified limits.



Applications

  • Data acquisition systems.
  • Sensor signal amplification.
  • Instrumentation and measurement equipment.
  • Differential signal conditioning.
  • Portable measurement devices.
