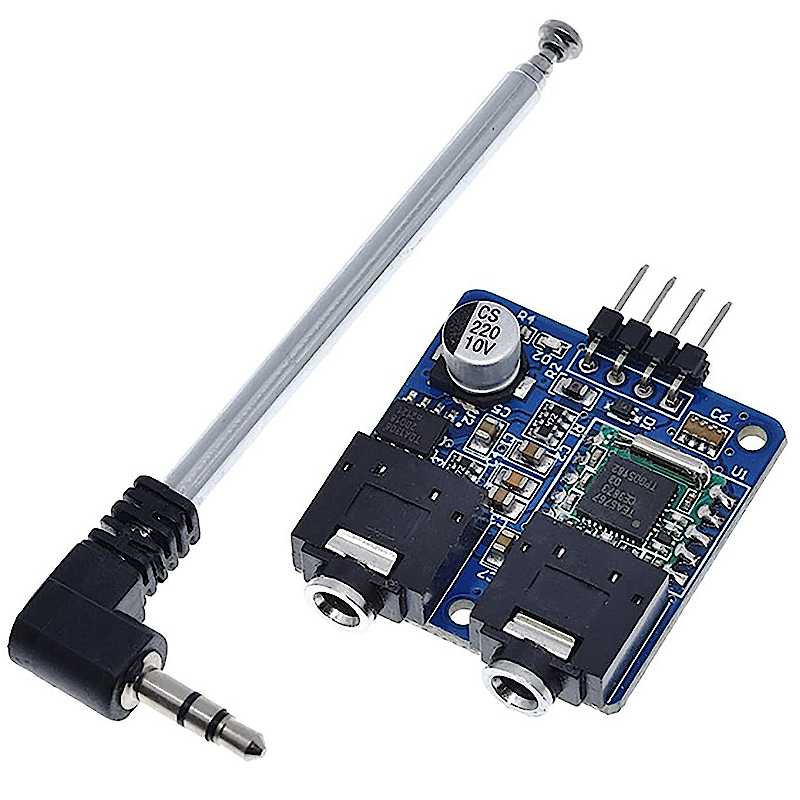

TEA5767 FM Radio Module 76-108MHZ w/ Antenna

: COM05093
€9.67
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Product Parameters:

  1. Power supply: 5V

  2. Circuit board size: 31 X 30 MM

  3. With power reverse protection diode

  4. There is a power output filter inductance on the board

  5. Multiple capacitor combined filtering

  6. Blue power indicator

  7. Antenna ports that can be plugged directly

  8. 12C bus communication

  9. Dedicated FM FM chip module TEA5767 of Philips

  10. On the board, the earphone power amplifier chip TDA1308 of Philips is used as audio amplification

  11. The onboard 3.5mm audio interface can directly connect the headset power amplifier, etc.

  12. To communicate with the MCU, only connect the power source and two I2C communication lines.



Documents:

Connecting the TEA5767 FM Radio to Arduino

TEA5767-Datasheet
