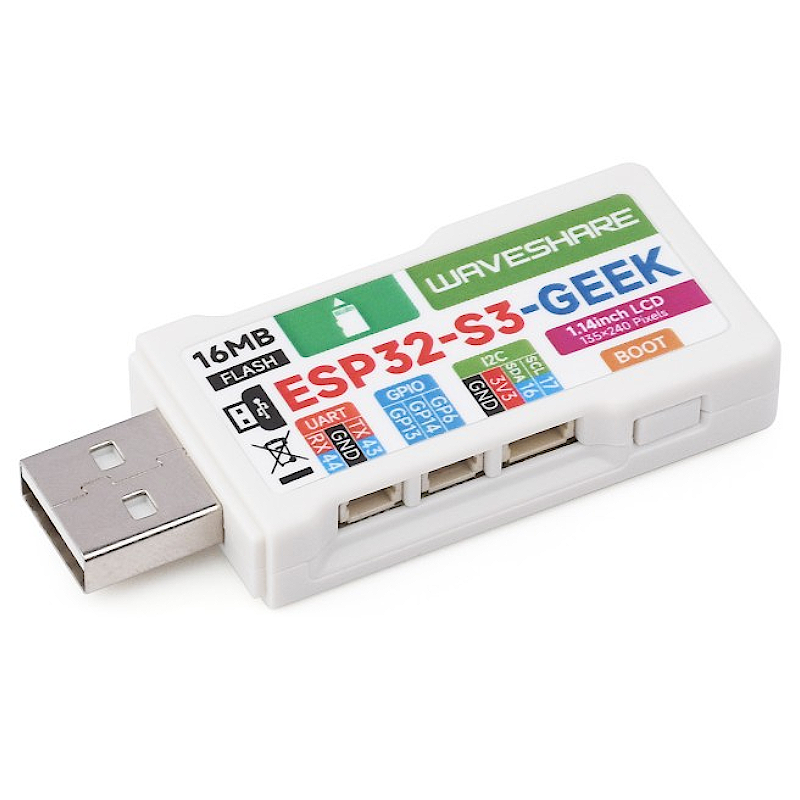

ESP32-GEEK Development Board, Based On ESP32-S3R2 Controller Chip, With 1.14″ 65K Color LCD, Supports WiFi & Bluetooth LE

:PCO05147
€13.50
Tax included

ESP32-S3-GEEK is a geek development board designed by Waveshare, onboard USB-A port, 1.14-inch LCD screen, a TF card slot, and other peripherals. Supports 2.4GHz WiFi and BLE 5, with integrated 16MB Flash & 2MB PSRAM, provides I2C port, UART port, and GPIO header, bringing more possibilities for your project.

If you want to know more about this product, please check the Wiki Page.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



Board specifications

ESP32-S3-GEEK is a geek development board designed by Waveshare, onboard USB-A port, 1.14inch LCD screen, TF card slot, and other peripherals. Supports 2.4GHz WiFi and BLE 5, with integrated 16MB Flash & 2MB PSRAM, provides I2C port, UART port, and GPIO header, bringing more possibilities for your project.

Key features include:

  1. Adopts ESP32-S3R2 chip with Xtensa® 32-bit LX7 dual-core processor, capable of running at 240 MHz

  2. Built in 512KB SRAM, 384KB ROM, 2MB of on-chip PSRAM, and onboard 16MB Flash memory

  3. Onboard 1.14inch 240×135 pixels 65K color IPS LCD display

  4. Integrated 2.4GHz WiFi and Bluetooth LE wireless communication

    1. WiFi supports Infrastructure BSS in Station, SoftAP, and Station + SoftAP modes

    2. WiFi supports 1T1R mode with data rate up to 150 Mbps

    3. Bluetooth supports high power mode (20dBm)

    4. Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna

  5. Onboard 3PIN UART port, 3PIN GPIO header and 4PIN I2C port

  6. Equipped with plastic case and cables

  7. Provides online open-source demo and resources, more convenient for learning and development



Combines multi functions in one

Onboard multi interfaces and 1.14inch LCD display, Combines with
WiFi & Bluetooth for more possibilities




Application Example

Suitable for creative applications such as wireless USB flash drives, USB WiFi/Bluetooth, USB Dongle based on ESP32-S3, as well as for Introductory Programming Learning, etc.

ESP32-S3-GEEK-details-5.jpg ESP32-S3-GEEK-details-7.jpg

Onboard Resources


  1. USB-A interface

  2. UART port

  3. GPIO header

  4. I2C port

  5. TF card slot

  1. W25Q128JVSIQ
    16MB NOR-Flash

  2. ESP32-S3

  3. BOOT button

  4. Onboard antenna



Outline dimensions




Resources & Services

Wiki: www.waveshare.com/wiki/ESP32-S3-GEEK



Package Content

Weight: 0.003 kg

ESP32-S3-GEEK and cables x1
