Is your I2C bus not ACK'ing the way you expect? Do you need to discover a UART's mysterious baud rate? Or do you want to reverse engineer an SPI protocol? These all sound like jobs for a logic analyzer! With the growing ubiquity of UART, I2C, and SPI sensors, logic analyzers are becoming a tool everyone needs in their toolbox or on their workbench.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
1. entrada de 8 canais;
2. Indicação de luz lógica: uma pequena luz indica o nível elétrico de CHO;
3. Recurso de entrada: 5PF, 100K Ohm;
4. Fonte de alimentação USB;
5. A taxa de amostragem pode ser definida como abaixo:
24MHz, 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;
6. Carregamento de dados em tempo real, o máximo de profundidade de coleta é 10T, longe da necessidade prática;
7. Suporte WIN7 (32 e 64), 2K, XP, LINUX
8. Download de informações de aqui.
Incluído no Pacote:

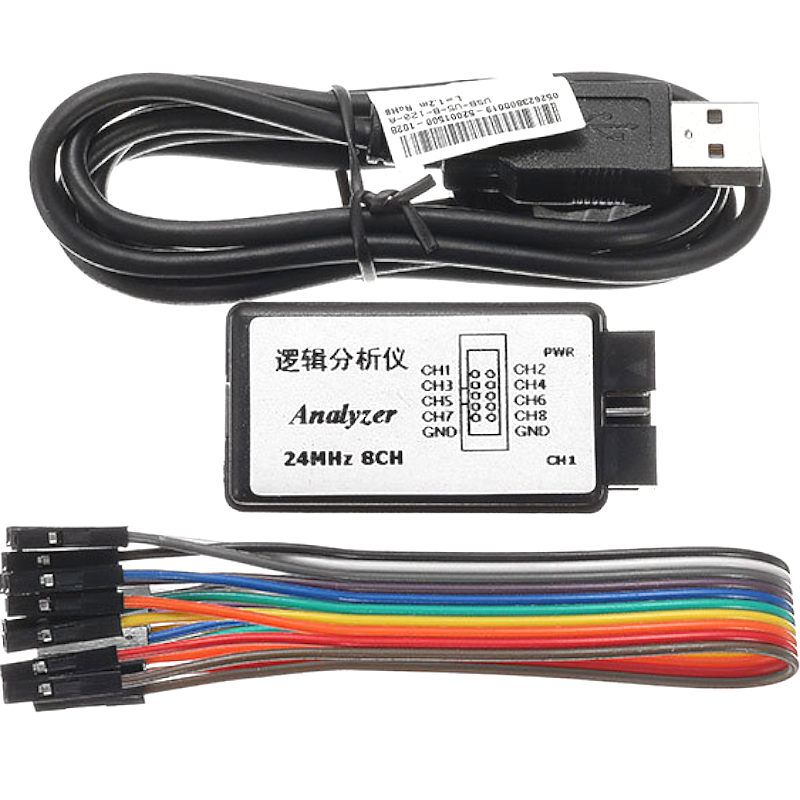

1 x USB Logiic Analyzer 24M 8CH Microcontrolador ARM FPGA Debug Tool
Is your I2C bus not ACK'ing the way you expect? Do you need to discover a UART's mysterious baud rate? Or do you want to reverse engineer an SPI protocol? These all sound like jobs for a logic analyzer! With the growing ubiquity of UART, I2C, and SPI sensors, logic analyzers are becoming a tool everyone needs in their toolbox or on their workbench.
