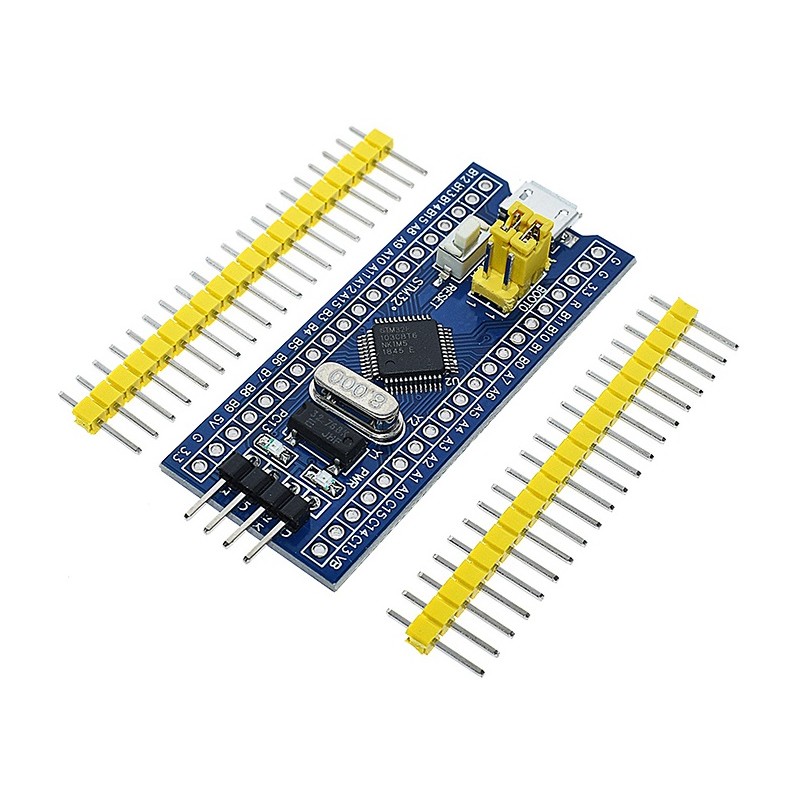

Blue Pill STM32F103C8T6 Development Board

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Specifications:

• STM32F103C8T6 ARM Cortex M3
• 72MHz, 90 DMIPS / 1.25 DMIPS / MHz
• 2.0V - 3.6V operating voltage
• 8MHz system crystal
• 32.768KHz RTC crystal
• 2.54mm pitch pins
• JTAG/SWD header
• 64 KByte Flash, 20 KByte SRAM
• 2x SPI, 3x USART, 2x I2C, 1x CAN
• 38 I/Os almost all 5V-tolerant
• 1x USB 2.0 FS
• 2x ADC (12-bit / 16-channel)
• 3x general timers, 1x advanced timer
• RT9193 3.3V LDO voltage regulator, max current 300mA
• Micro USB for power and data
• Blue user LED (PC13)
• 2x jumpers for bootloader selection
• Reset button
• 2x20 side pins + 1x4 SWD pins
• Dimensions: 53.0mm x 22.5mm
