Digital Universal Multimeter with K-Type temperature - REBEL RB-30C

: FER02070
€11.90
Tax included

Compact digital multimeter for AC/DC voltage, DC current and resistance measurements. Features K-type thermocouple temperature measurement, diode, transistor hFE and continuity testing, as well as 1.5 V and 9 V battery testing. Includes a backlit display, data hold function and manual range selection.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

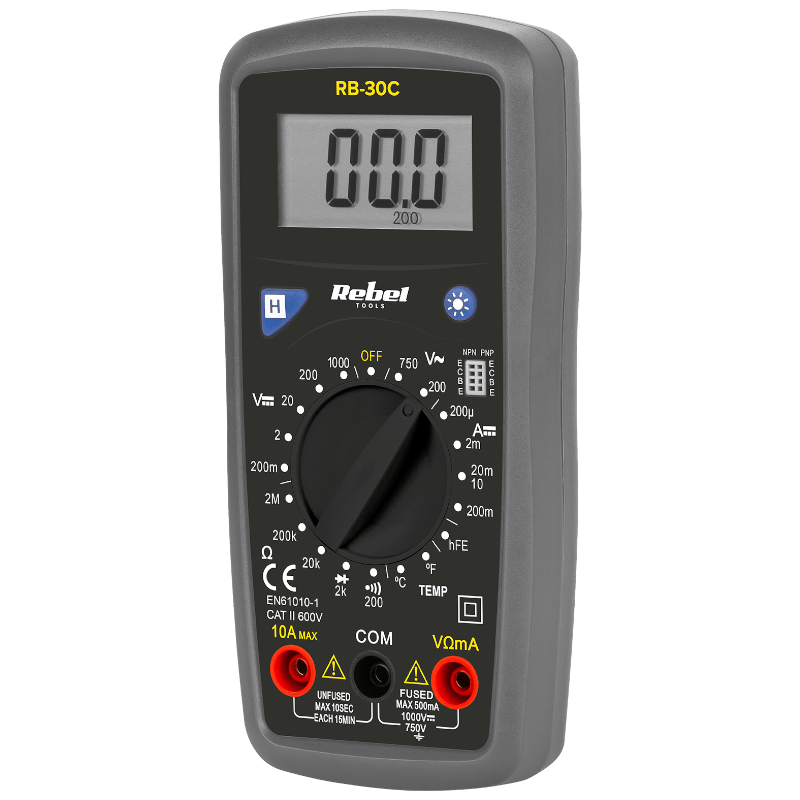

The REBEL RB-30C is a versatile digital multimeter designed for electrical and electronics measurements, suitable for professional, workshop and DIY applications. It measures DC voltage up to 1000 V, AC voltage up to 750 V, DC current up to 10 A and resistance up to 2 MΩ.

The multimeter features temperature measurement using a K-type thermocouple, diode testing, transistor hFE testing, continuity testing and 1.5 V and 9 V battery testing.

It features a 45 × 21 mm backlit display, manual range selection, automatic polarity detection, low-battery indication and a Data Hold function for keeping the latest measurement displayed. The retractable stand provides stable positioning during measurements.

With dimensions of 160 × 76 × 32 mm and a weight of 150 g, the RB-30C is suitable for both workshop and portable use. It is powered by 2 × AAA batteries.



Technical Specifications

Brand REBEL
Model RB-30C
Part Number MIE-RB-30C
EAN 5901890058162
DC Voltage 200 mV / 2 V / 20 V / 200 V / 1000 V
DC Accuracy ±(1% + 5)
AC Voltage 200 V / 750 V
AC Accuracy ±(2% + 10)
DC Current 200 µA / 2 mA / 20 mA / 200 mA / 10 A
DC Current Accuracy ±(2% + 10)
Resistance 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ
Resistance Accuracy ±(1% + 4)
Battery Test 1.5 V / 9 V
Diode Test Yes
Transistor Test hFE
Continuity Test Yes
Temperature Measurement Yes
Range Selection Manual
Polarity Automatic
Backlit Display Yes
Data Hold Yes
Low Battery Indicator Yes
Maximum Display 1999
Sampling Rate 2 times/s
Display Size 45 × 21 mm
Operating Temperature 0 °C to 40 °C
Operating Humidity <80%
Storage Temperature -10 °C to 50 °C
Storage Humidity <85%
Power Supply 2 × AAA batteries
Dimensions 160 × 76 × 32 mm
Weight 150 g



Package Contents

  • 1 × REBEL RB-30C multimeter
  • 1 × Test lead set
  • 1 × K-type thermocouple
  • 1 × User manual
