Digital multimeter 10A 1000V 20M? - REBEL RB-33B

: FER02069
€7.90
Tax included

Compact digital multimeter with manual range selection for AC/DC voltage, DC current and resistance measurements. Features 1.5 V and 9 V battery testing, diode and continuity testing, backlit display, data hold function and low-battery indication.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

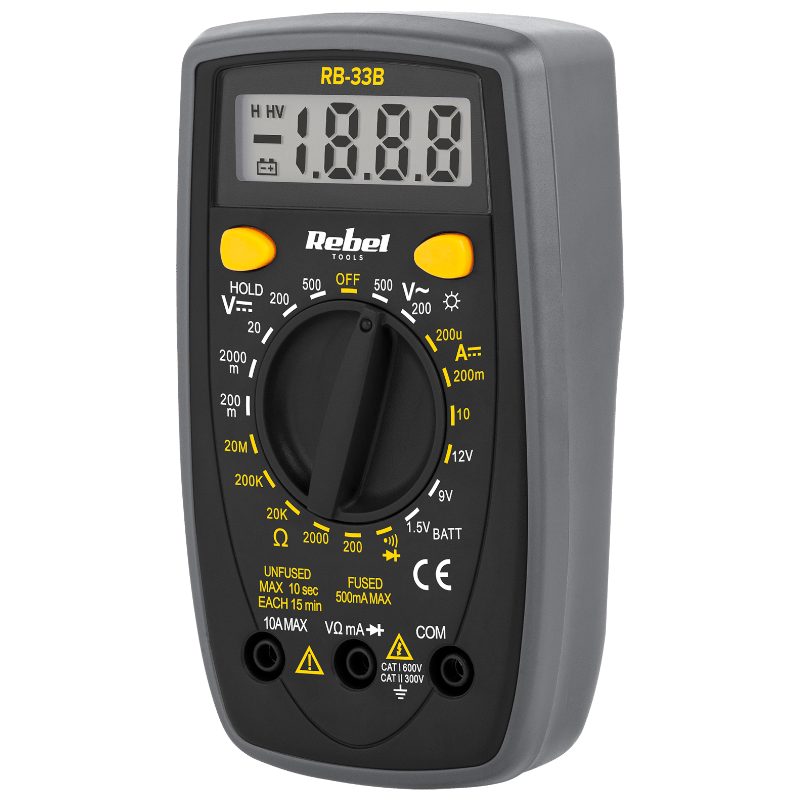

The REBEL RB-33B is a versatile digital multimeter designed for electricians, technicians and electronics enthusiasts. It measures DC voltage up to 500 V, AC voltage up to 500 V, DC current up to 10 A and resistance up to 20 MΩ.

It also features 1.5 V and 9 V battery testing, diode testing and continuity testing. The 45 × 21 mm backlit display provides easier reading in low-light conditions.

The multimeter features manual range selection and automatic polarity detection. The Data Hold function allows the last measurement to remain displayed, while the low-battery indicator helps prevent unexpected interruptions during use. A retractable stand provides stable positioning on a workbench.

With dimensions of 160 × 76 × 32 mm and a weight of 150 g, the RB-33B is suitable for both workshop and portable use. It is powered by a 9 V battery.



Technical Specifications

Brand REBEL
Model RB-33B
Part Number MIE-RB-33B
EAN 5901890059060
DC Voltage 200 mV / 2000 mV / 20 V / 200 V / 500 V
AC Voltage 200 V / 500 V
DC Current 200 µA / 200 mA / 10 A
Resistance 200 Ω / 2000 Ω / 20 kΩ / 200 kΩ / 20 MΩ
Battery Test 1.5 V / 9 V
Diode Test Yes
Continuity Test Yes
Range Selection Manual
Polarity Automatic
Backlit Display Yes
Data Hold Yes
Low Battery Indicator Yes
Maximum Display 1999
Sampling Rate 2 times/s
Display Size 45 × 21 mm
Operating Temperature 0 °C to 40 °C
Operating Humidity <80%
Storage Temperature -10 °C to 50 °C
Storage Humidity <85%
Power Supply 1 × 9 V battery
Dimensions 160 × 76 × 32 mm
Weight 150 g



Package Contents

  • 1 × REBEL RB-33B multimeter
  • 1 × Test lead set
  • 1 × User manual
