• New

Digital multimeter 10A 1000V 2M? with 50HZ Function Generator - REBEL RB-830BUZ

: FER02068
€4.90
Tax included

Compact digital multimeter for AC/DC voltage, DC current and resistance measurements, featuring diode, transistor hFE and continuity testing, as well as a signal generator function. It offers manual range selection, low-battery indication and automatic polarity detection.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

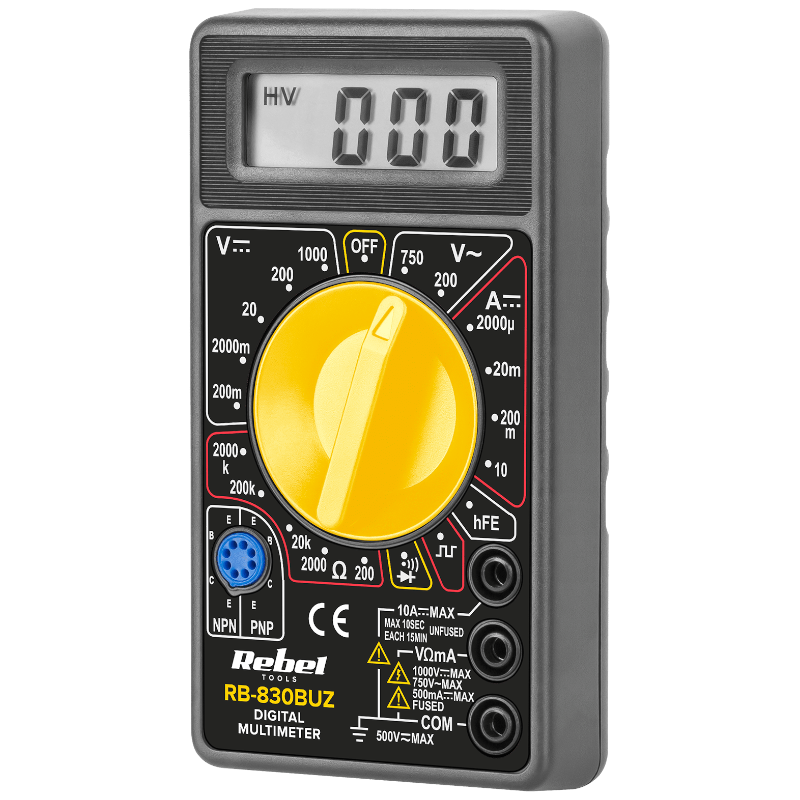

The REBEL RB-830BUZ is a compact digital multimeter designed for electrical and electronics measurements. It measures DC voltage up to 1000 V, AC voltage up to 750 V, DC current up to 10 A and resistance up to 2 MΩ.

The multimeter features manual range selection, low-battery indication and automatic polarity detection. It also provides diode, transistor hFE and continuity testing, as well as a signal generator function. The display provides a maximum reading of 1999, with a sampling rate of 2 readings per second.

With its compact size of 122 × 66 × 24 mm and weight of only 107 g, the RB-830BUZ is suitable for everyday electrical and electronics measurements, both in the workshop and for portable use.



Technical Specifications

Brand REBEL
Model RB-830BUZ
Part Number MIE-RB-830BUZ
EAN 5901890058063
DC Voltage 200 mV / 2 V / 20 V / 200 V / 1000 V
DC Accuracy ±(1% + 5)
AC Voltage 200 V / 750 V
AC Accuracy ±(2% + 10)
DC Current 2000 µA / 20 mA / 200 mA / 10 A
DC Accuracy ±(2% + 10)
Resistance 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ
Resistance Accuracy ±(1% + 4)
Diode Test Yes
Transistor Test hFE
Continuity Test Yes
Signal Generator Yes
Range Selection Manual
Polarity Automatic
Low Battery Indicator Yes
Maximum Display 1999
Display Size 45 × 13 mm
Sampling Rate 2 times/s
Operating Temperature 0 °C to 40 °C
Operating Humidity <80%
Storage Temperature -10 °C to 50 °C
Storage Humidity <85%
Power Supply 1 × 9 V battery
Dimensions 122 × 66 × 24 mm
Weight 107 g



Package Contents

  • 1 × REBEL RB-830BUZ multimeter
  • 1 × Test lead set
  • 1 × User manual
