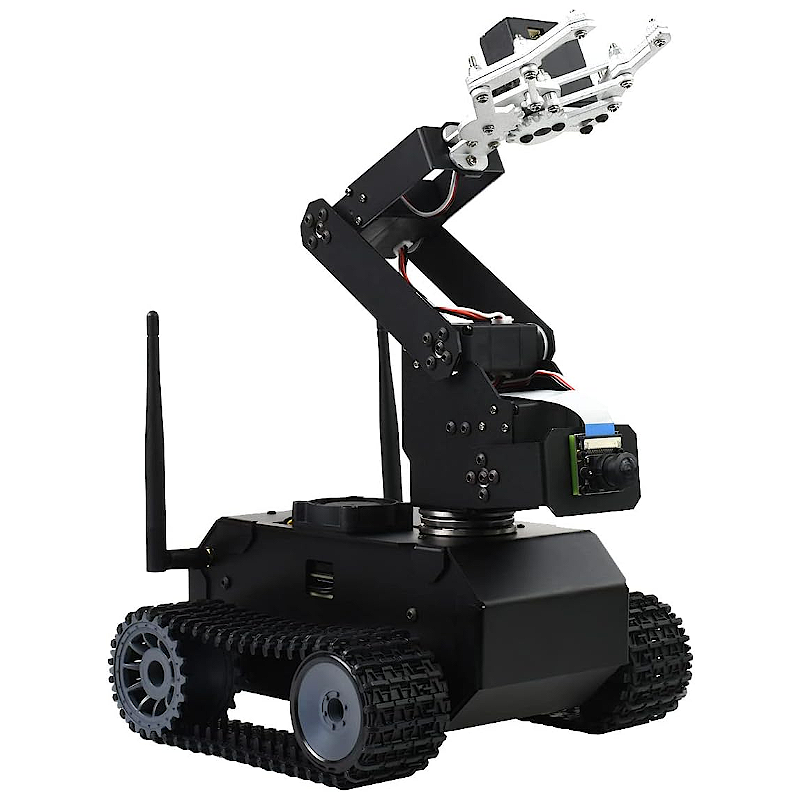

JeTank AI Kit Accessories (Jetson and Batteries not included) - Waveshare 20986

:ROB05076
€194.31

This is an intelligent crawler robot specially designed for the NVIDIA JetBot AI project, based on the Jetson Nano Developer Kit. The expansion board integrates OLED, motor drive circuit, servo drive circuit, power supply circuit, battery protection circuit, etc., which saves you the trouble of welding the circuit, supports unloading charging and does not need to repeatedly remove the battery. The software is fully compatible with the NVIDIA JetBot AI project and supports intelligent obstacle avoidance, autonomous line patrol, motion detection, color recognition tracking, and other functions. The robot is also equipped with a four-degree-of-freedom mechanical arm, which is controlled by a three-dimensional coordinate system and can be flexibly controlled by a wireless gamepad.

If you want to know more about this product, please check out his Wiki Page.

Note: 18650 batteries and Jetson Nano are not included.

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.




Quality chassis with track

Adopting 37-520 full-metal DC gearmotor, high torque, low noise



4-DOF robotic arm

180° wide angle rotation, flexible controlling



Quality serial bus full-metal digital servo

High torque, high precision, preventing it from being stuck and damaged



Auto Collision Avoidance

Collecting data via camera by taking enough images of different conditions, using the data to train the neutral network, combined with AI algorithm, finally achieving auto collision avoidance on sorts of environments.



Deep Learning, Autonomous Driving




Motion detection

Capturing moving objects on the video by motion detection



Color recognition & tracking

Recognizing and locking specified color by camera, and then using pan & tilt to track the specified color automatically

JETANK-AI-Kit-details-17-1.gif JETANK-AI-Kit-details-17-2.gif



Gamepad teleoperation

Easier to use, more flexible






3D coordinate system controlled robotic arm

Calculated via inverse kinematics algorithm

Input coordinate of the target, calculating the moving angles of the 4-DOF servos by inverse kinematics algorithm, and then controlling the servos via serial bus, moving the robotic arm to reach target position





JupyterLab programming

JupyterLab is a web-based interactive development environment, supports multi data formats including code, document, image/video, UI control interface, etc., provides rich visualized output, allows easily creating dashboard and UI, supports flexible configuration and arrangement for modular interface.





8MP 160° FOV camera

IMX219 sensor, 3280×2464 resolution


Dual-Band Wireless AC8265

High Speed WiFi, Stable Bluetooth Communication, Low Latency



Highly integrated expansion board

Rechargeable, Battery Voltage Monitor, No Messy Wiring, Simple Assembly


SAFETY CAUTIONS

  1. Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.

  2. Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.

  3. Do not mix use old batteries with new ones, avoid using batteries of different brands.

  4. When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.

  5. Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.

  6. Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.




Resources & Services

  1. Wiki: JETANK_AI_Kit

  2. Assemby Guide



Package Content

Weight: 1.886 kg

The 18650 batteries are NOT included

Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported, learn more

  1. NOT INCLUDED Jetson Nano

  2. NOT INCLUDED TF Card 64GB

  3. Aluminum alloy kit x1

  4. JETANK expansion board x1

  5. Wireless-AC8265 with antenna x1

  6. IMX219-160 Camera x1

  7. Acrylic camera spacer x1

  8. Camera FFC x1

  9. 0.91inch OLED x1

  10. 12.6V 2A power supply + additional EU head x1

  11. Robotic arm gripper x1

  12. Thrust bearing x1

  13. Flange bearing x2

  14. Coupler x2

  15. Gearmotor x2

  16. 5264 servo wire x1

  17. Track kit (including bolt, nut, and screwdriver) x2

  18. 2*5Pin wire x1

  19. Spanner x1

  20. L-form hex socket spanner 2PCS x1

  21. SCS15-AP servo x4

  22. Screwdriver 2PCS x1

  23. SCS15-S servo x1

  24. Card reader x1

  25. Mini cross wrench sleeve x2

  26. Cooling fan x1

  27. PH2.0 4PIN dual connector cable x1

  28. Screws pack x1
