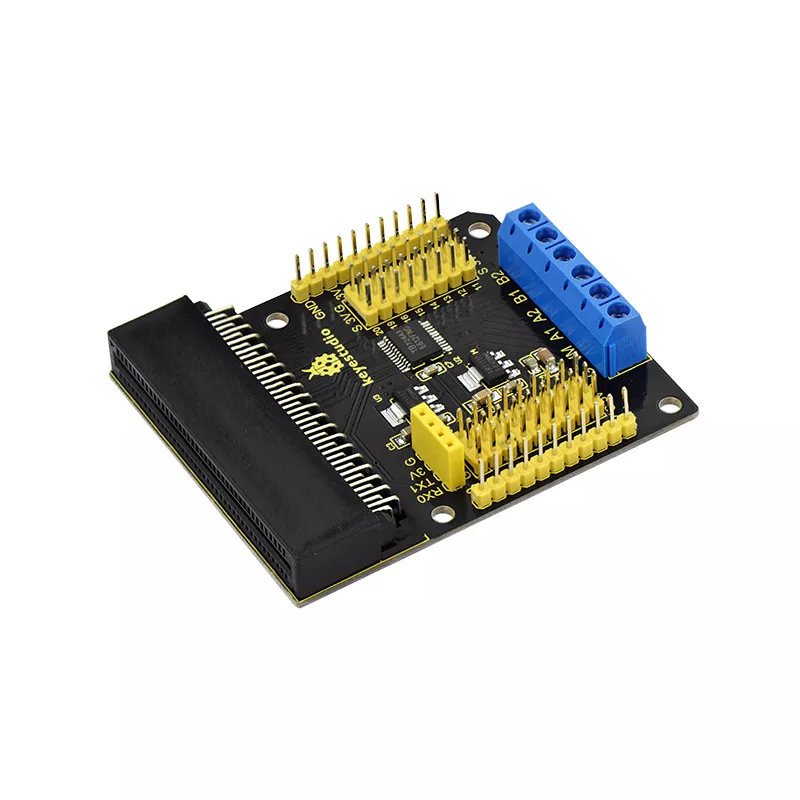

Motor Drive Breakout Board for micro:bit - Keyestudio KS0308

:PCO07055
€15.90
Tax included

This expansion board offers a very simple and fast way to connect your Micro:bit to two motors or even servos.

If you want to know more about this product, please check the Wiki Page

Note: Micro:bit board is not included.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description

Looking to do more with your BBC micro:bit? Unlock its potential with this motor drive breakout board for the BBC micro:bit!
The motor drive breakout board integrates TB6612FNG chip. Its per channel can output up to 1.2 A continuous drive current, with peak current up to 2A/3.2A.
There are 4 motor control modes: Forward/Reverse /Brake /Stop. And PWM supporting frequency is up to 100 kHz.

The BBC micro:bit pins are broken out to 3PIN headers. These provide an easy way of connecting circuits using 3PIN jumper wires.
At the same time, a 3.3V and 5V voltage-regulator chip is integrated on the breakout board, breaking out 3.3V and 5V power output interfaces.
The board also comes with serial port communication pins.



Features

  1. Four motor control modes: Forward/Reverse /Brake /Stop.
  2. Access to 3Pin headers connection
  3. Integrated with 3.3V and 5V voltage-regulator chip
  4. Comes with serial port communication pins



Parameters

  1. Input Voltage：DC 6-12V
  2. Drive Partial Working Current：≤1.2A
  3. Size：70mm*58mm



Documents

Wiki Page
