Bluetooth Dimmer Module
  • Bluetooth Dimmer Module
  • Bluetooth Dimmer Module
  • Bluetooth Dimmer Module

Bluetooth Dimmer Module

:MRE01022
€27.90
Tax included

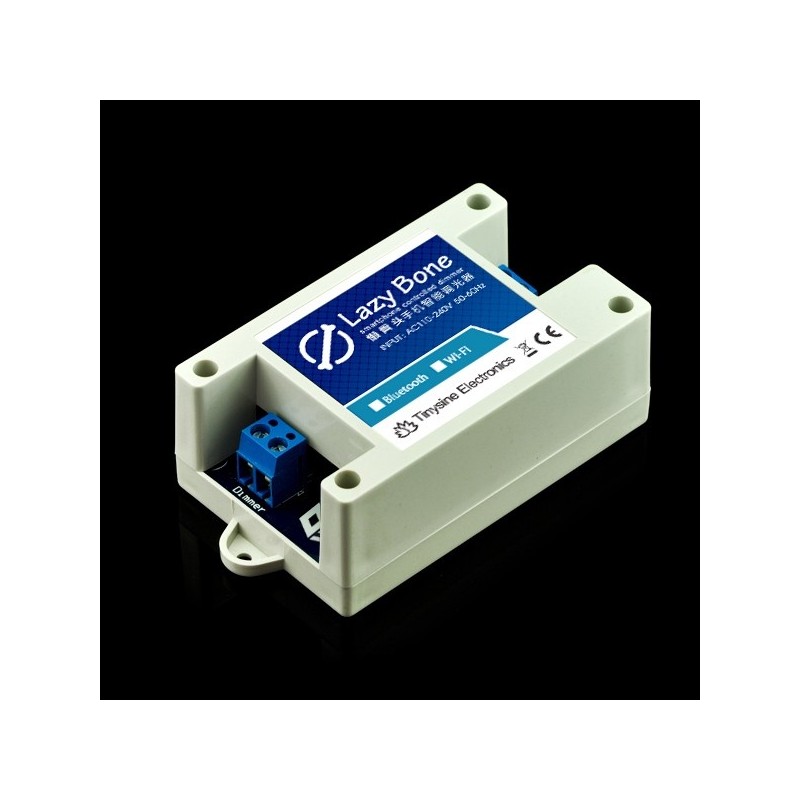

This is the Bluetooth LazyBone dimmer.
Current rating of up to 10 Amp

Quantity
Last items in stock

This LazyBone dimmer is a smart dimmer integrated microcontroller and a powerful Bluetooth, control distance up to 30m (outdoor). When you connect it with your lamp. You can dimming your lamp through your android smartphone or a computer. It very easy to use. 2 ports for AC input and 2 dimmer ports for AC output. AC input can be AC100-240V 50/60Hz compatiable. So it can be used worldwide. When you connect this Lazybone with your smartphone. Rotating the virtual knob. dimmer ports output voltage will changing. Lamp light also changing follow your rotate.

Note: This dimmer can only dimming incandescent bulb. CAN NOT dimming  LED bulb or fluorescent lamp. But it can be used as an ON/OFF switch for every kinds of lamp.

We are also developing a AC motor speed ​​controller. You can use it control you fan speed. It will coming soon!


Software Installation:

It has 2 basic version: Bluetooth and WIFI. And this is the Bluetooth LazyBone dimmer. If you want a WiFi LazyBone click here. We provide a free android APP for you to control it. You can control multi Lazybones by this one APP.

How to use the software:

1. Click the APP, if your phone bluetooth is not open , it will indicate to open it.

2. Click the Menu and then 'Connect device' . Phone will detect the bluetooth device automatically, and input the PIN number:'1234' (will auto connect next time). When you first time connect your lamp, you can assign a name for it. for example: Room.

3. Now can control the lamp on/off by press the on/off button on the left corner. And adjusting the light by rotating the knob.



Cable connect diagram:








Commands
We also provided a very simple command set for developer developing their own APP.  The Lazybone operates with an easy to use command set as described in the table below.

Command (Hex) Action
5B 00 0D

Get lamp states - sends 2 bytes back to the controller: 'on/off state'+'light value'

on/off state: 0-OFF, 1-ON

light value:  0-255,   0- Brightest, 255- Darkest

67 xx 0D xx - light value. 0-255,   0- Brightest, 255- Darkest
65 00 0D Turn on Lamp
6F 00 0D Turn off  Lamp



Features:

  • AC100-240 working voltage.
  • 50/60Hz auto detecting.
  • Max Load: 400W
  • Control distance:30m (outdoor)
  • Gentle gradient light
  • Support Android: Above V2.2

Download:


MRE01022
